Penumbral Lunar Eclipse of -1663 Oct 28 (1664 Oct 28 BCE)

Fred Espenak

Introduction

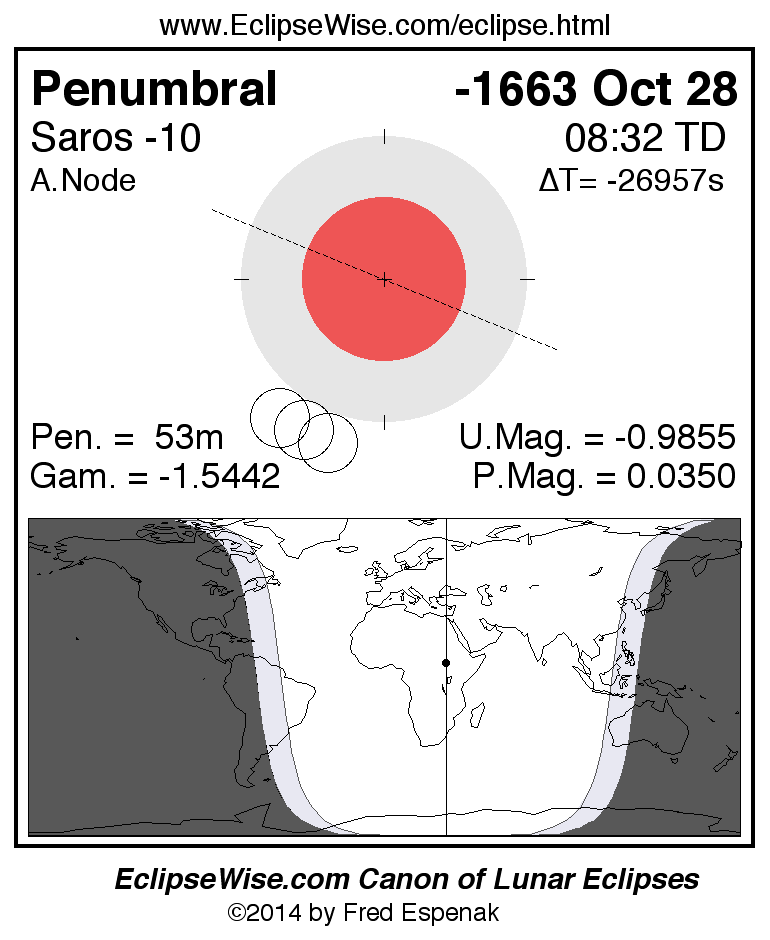

The Penumbral Lunar Eclipse of -1663 Oct 28 (1664 Oct 28 BCE) is visible from the geographic regions shown on the map to the right. The diagram above the map depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on -1663 Oct 28 at 08:31:53 TD (21:48:59 UT1). This is 3.7 days before the Moon reaches perigee. During the eclipse, the Moon is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -44343.

The eclipse belongs to Saros -10 and is number 80 of 85 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very shallow penumbral eclipse. It has a penumbral eclipse magnitude of only 0.0350 and a penumbral eclipse duration of 53.0 minutes. Gamma has a value of -1.5442.

The penumbral lunar eclipse of -1663 Oct 28 is followed two weeks later by a annular solar eclipse on -1663 Nov 11.

Another lunar eclipse occurs one synodic month after the -1663 Oct 28 eclipse. It is the penumbral lunar eclipse of -1663 Nov 26.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38574.4 seconds for this eclipse. The uncertainty in ΔT is 2435.2 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 10.17°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of -1663 Oct 28 .


Eclipse Data: Penumbral Lunar Eclipse of -1663 Oct 28

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 0.03500
Umbral Magnitude-0.98549
Gamma-1.54419
Epsilon 1.5059°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse -1663 Oct 28 at 08:31:52.9 TD (21:48:58.5 UT1) 1113947.409011
Ecliptic Opposition -1663 Oct 28 at 08:15:52.2 TD (21:32:57.8 UT1) 1113947.397891
Equatorial Opposition -1663 Oct 28 at 07:02:47.1 TD (20:19:52.6 UT1) 1113947.347137
Geocentric Coordinates of Sun and Moon
-1663 Oct 28 at 08:31:52.9 TD (21:48:58.5 UT1)
Coordinate Sun Moon
Right Ascension13h17m38.1s01h20m28.5s
Declination-08°22'29.1"+07°02'34.9"
Semi-Diameter 16'16.3" 15'56.7"
Eq. Hor. Parallax 08.9" 0°58'31.1"
Geocentric Libration of Moon
Angle Value
l -3.8°
b 1.9°
c -20.8°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2587°
Umbral Radius 0.7164°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 38574.4 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series -10 (80/85)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of -1663 Oct 28

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD
Time
UT1
Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP108:05:31.421:22:36.906°55.5'N037°48.9'E 161.0° 1.5243°
Greatest EclipseGreatest08:31:52.921:48:58.507°02.6'N031°26.1'E 152.1° 1.5059°
Penumbral EndsP408:58:34.022:15:39.507°09.7'N024°58.6'E 143.1° 1.5247°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)00h53m02.6s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of -1663 Oct 28

Polynomial Besselian Elements
-1663 Oct 28 at 09:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 0.92708 -1.21311 -0.1463 1.25894 0.71655 0.26580
1 0.47496 0.25145 -0.0003 0.00041 0.00041 0.00011
2 0.00019 0.00013 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 9.000

Explanation of Besselian Elements

Links for the Penumbral Lunar Eclipse of -1663 Oct 28 (1664 Oct 28 BCE)

Links to Additional Lunar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Penumbral Lunar Eclipse of -1663 Oct 28 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38574.4 seconds for this eclipse. The uncertainty in ΔT is 2435.2 seconds corresponding to a standard error in longitude of the eclipse visibility zones of 10.17°.

Acknowledgments

Some of the content on this web site is based on the book Thousand Year Canon of Lunar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce this data when accompanied by an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
