Solar Eclipse Prime Page

Annular Solar Eclipse of 2997 Jun 26

Fred Espenak

Introduction

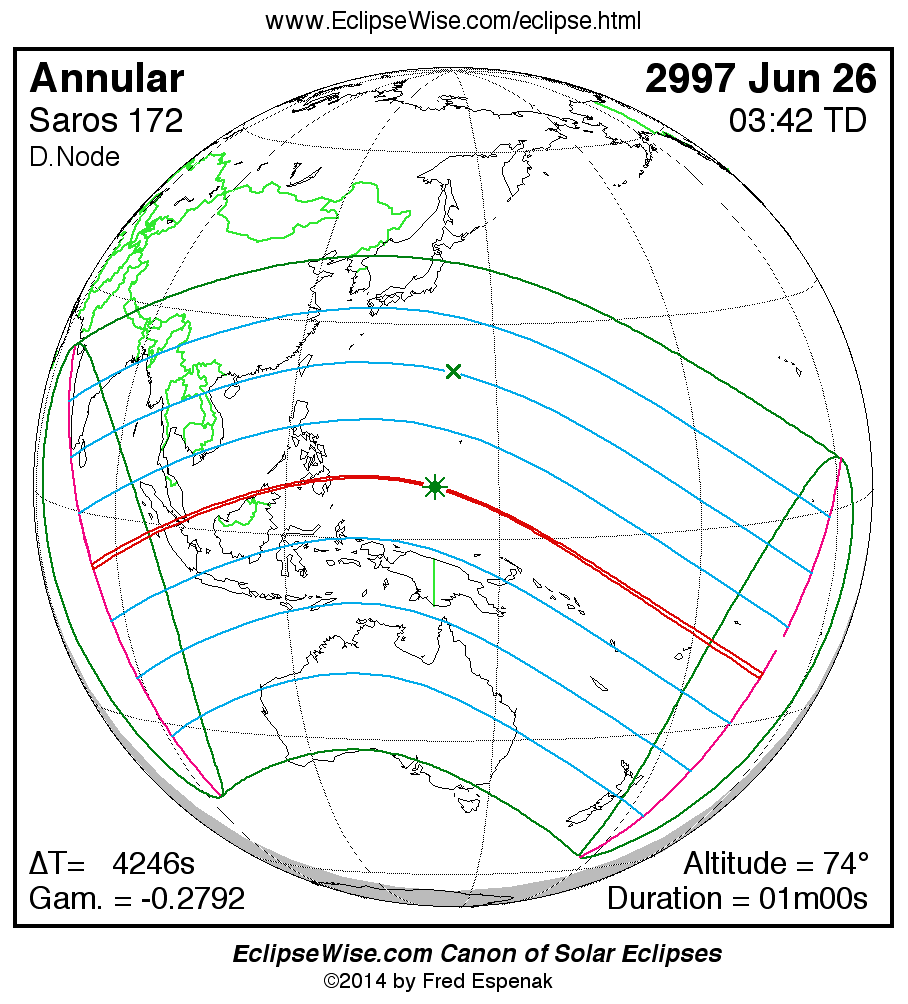

eclipse map

The Annular Solar Eclipse of 2997 Jun 26 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2997 Jun 26 at 03:41:39 TD (02:30:53 UT1). This is 6.2 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Taurus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 13290.

The eclipse belongs to Saros 172 and is number 30 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The annular solar eclipse of 2997 Jun 26 is preceded two weeks earlier by a partial lunar eclipse on 2997 Jun 12.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4246.0 seconds for this eclipse. The uncertainty in ΔT is 922.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.86°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2997 Jun 26 .

Eclipse Data: Annular Solar Eclipse of 2997 Jun 26

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.99160
Eclipse Obscuration 0.98328
Gamma-0.27917
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2997 Jun 26 at 03:41:39.5 TD (02:30:53.5 UT1) 2815868.604786
Ecliptic Conjunction 2997 Jun 26 at 03:44:47.7 TD (02:34:01.8 UT1) 2815868.606965
Equatorial Conjunction 2997 Jun 26 at 03:46:12.7 TD (02:35:26.7 UT1) 2815868.607948
Geocentric Coordinates of Sun and Moon
2997 Jun 26 at 03:41:39.5 TD (02:30:53.5 UT1)
Coordinate Sun Moon
Right Ascension06h25m45.3s06h25m35.5s
Declination+23°10'42.4"+22°55'08.2"
Semi-Diameter 15'45.6" 15'23.6"
Eq. Hor. Parallax 08.7" 0°56'29.8"
Geocentric Libration of Moon
Angle Value
l 4.9°
b 0.4°
c 1.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 4246.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 172 (30/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2997 Jun 26

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP100:49:48.823:39:02.901°59.6'S097°25.4'E
First Internal ContactP203:02:27.401:51:41.527°54.6'S076°31.2'E
Last Internal ContactP304:20:43.503:09:57.542°26.1'S159°11.9'W
Last External ContactP406:33:34.405:22:48.417°11.1'S176°58.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N102:04:00.000:53:14.121°42.5'N068°12.5'E
South Extreme Path Limit 1S102:30:43.201:19:57.242°59.6'S094°52.4'E
North Extreme Path Limit 2N205:19:23.004:08:37.106°35.2'N147°59.1'W
South Extreme Path Limit 2S204:52:22.403:41:36.456°01.8'S176°28.8'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2997 Jun 26

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU101:52:51.600:42:05.607°17.1'S083°56.8'E
First Internal ContactU201:54:22.700:43:36.707°29.0'S083°39.2'E
Last Internal ContactU305:28:51.104:18:05.122°37.2'S163°27.7'W
Last External ContactU405:30:27.904:19:42.022°24.8'S163°45.5'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N101:53:33.100:42:47.107°02.0'S083°39.9'E
South Extreme Path Limit 1S101:53:41.200:42:55.307°44.0'S083°56.2'E
North Extreme Path Limit 2N205:29:43.804:18:57.922°09.0'S163°26.5'W
South Extreme Path Limit 2S205:29:35.004:18:49.122°52.9'S163°46.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2997 Jun 26

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C101:53:37.100:42:51.107°23.0'S083°48.0'E
Extreme Central Line Limit 2C205:29:39.504:18:53.522°31.0'S163°36.6'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse03:41:39.502:30:53.507°10.1'N123°33.5'E 73.8° 7.7° 30.7 km00m59.95s
Greatest Duration01:53:37.100:42:51.107°23.0'S083°48.0'E 0.0° 66.6° 82.9 km01m30.70s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2997 Jun 26

Polynomial Besselian Elements
2997 Jun 26 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.12125 -0.29968 23.1786 0.55294 0.00675 238.7144
1 0.52762 -0.07657 -0.0016 0.00011 0.00011 14.9991
2 -0.00004 -0.00014 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046079
Tan ƒ2 0.0045849

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2997 Jun 26

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2997 Jun 26 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 4246.0 seconds for this eclipse. The uncertainty in ΔT is 922.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.86°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
