Partial Solar Eclipse of 2912 Aug 04

Fred Espenak

Introduction

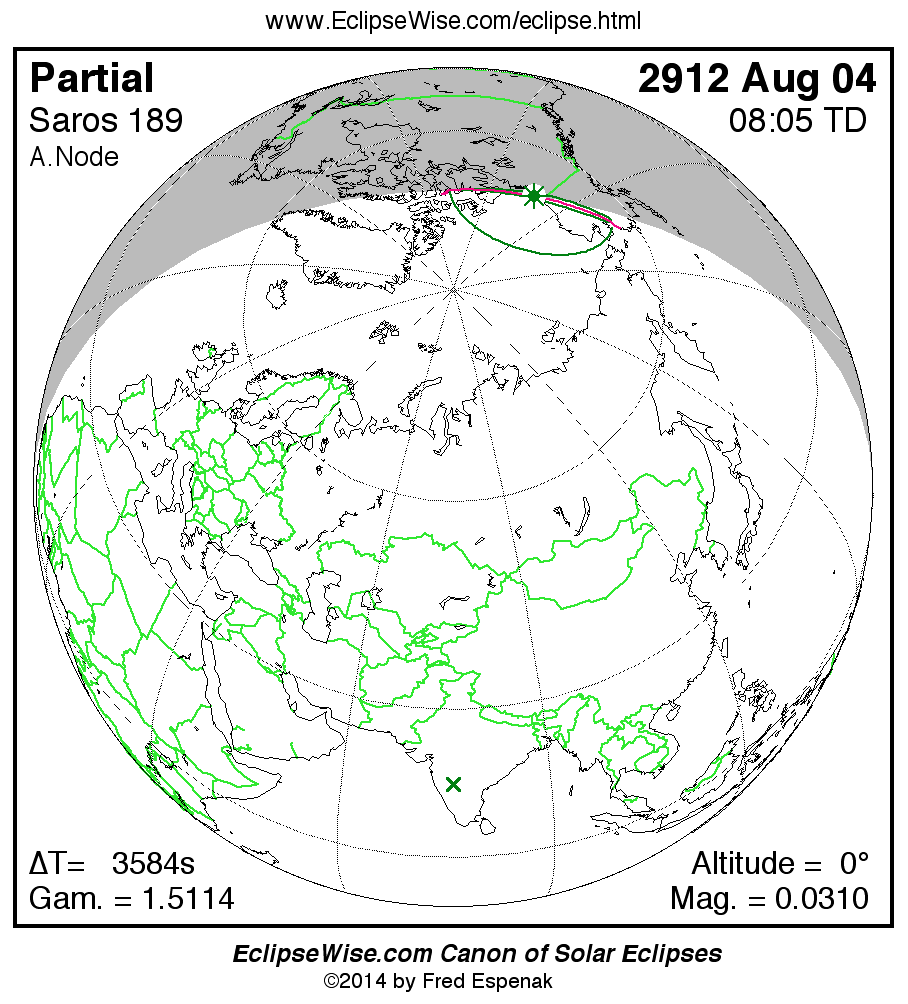

The Partial Solar Eclipse of 2912 Aug 04 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2912 Aug 04 at 08:04:40 TD (07:04:57 UT1). This is 0.1 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of 12240.

The eclipse belongs to Saros 189 and is number 1 of 70 eclipses in the series. Thus, the 2912 Aug 04 event is the very first eclipse of the series . All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is an extremely shallow partial eclipse. It has an eclipse magnitude of only 0.0310, while Gamma has a value of 1.5113. This is a very deep partial eclipse. It has an eclipse magnitude of 0.0310, while Gamma has a value of 1.5113.

The partial solar eclipse of 2912 Aug 04 is preceded two weeks earlier by a total lunar eclipse on 2912 Jul 20.

Another solar eclipse occurs one synodic month before the 2912 Aug 04 eclipse. It is the total solar eclipse of 2912 Jul 06.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3583.2 seconds for this eclipse. The uncertainty in ΔT is 796.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.33°.

The following links provide maps and data for the eclipse.

Orthographic Map: Partial Solar Eclipse of 2912 Aug 04 - global map of eclipse visibility
Google Map: Partial Solar Eclipse of 2912 Aug 04 - interactive map of the eclipse path
Circumstances Table: Partial Solar Eclipse of 2912 Aug 04 - eclipse times for hundreds of cities
Saros 189 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 2912 Aug 04 .

Eclipse Data: Partial Solar Eclipse of 2912 Aug 04

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.03101
Eclipse Obscuration	0.00662
Gamma	1.51133

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	2912 Aug 04 at 08:04:39.7 TD (07:04:56.5 UT1)	2784861.795099
Ecliptic Conjunction	2912 Aug 04 at 08:19:15.6 TD (07:19:32.4 UT1)	2784861.805236
Equatorial Conjunction	2912 Aug 04 at 07:34:35.1 TD (06:34:51.8 UT1)	2784861.774211

Geocentric Coordinates of Sun and Moon
2912 Aug 04 at 08:04:39.7 TD (07:04:56.5 UT1)
Coordinate	Sun	Moon
Right Ascension	09h01m16.3s	09h02m30.6s
Declination	+16°51'48.0"	+18°22'37.5"
Semi-Diameter	15'44.7"	16'43.2"
Eq. Hor. Parallax	08.7"	1°01'21.9"

Geocentric Libration of Moon
Angle	Value
l	-0.2°
b	-2.0°
c	17.9°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE406
ΔT	3583.2 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	189 ( 1/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2912 Aug 04

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	07:42:07.2	06:42:24.0	72°55.8'N	107°47.4'W
Last External Contact	P4	08:27:26.1	07:27:42.9	64°39.0'N	160°10.1'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	07:45:25.8	06:45:42.6	73°07.2'N	102°04.6'W
South Extreme Path Limit 1	S1	08:24:10.0	07:24:26.8	63°10.6'N	162°17.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2912 Aug 04

Polynomial Besselian Elements
2912 Aug 04 at 08:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.24313	1.49234	16.8606	0.53024	-0.01584	298.0339
1	0.57395	-0.11127	-0.0109	-0.00000	-0.00000	15.0026
2	-0.00004	-0.00020	-0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046021
Tan ƒ2	0.0045792

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 8.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 2912 Aug 04

Orthographic Map: Partial Solar Eclipse of 2912 Aug 04 - global map of eclipse visibility
Google Map: Partial Solar Eclipse of 2912 Aug 04 - interactive map of the eclipse path
Circumstances Table: Partial Solar Eclipse of 2912 Aug 04 - eclipse times for hundreds of cities
Saros 189 Table - data for all eclipses in the Saros series
Partial Solar Eclipse of 2912 Aug 04 - Google search for links to this eclipse

Links to Additional Solar Eclipse Information

Home - home page of EclipseWise with predictions for both solar and lunar eclipses

Solar Eclipses - primary page for solar eclipse predictions
Solar Eclipse Links - detailed directory of links

Six Millennium Catalog of Solar Eclipses - covers the years -2999 to +3000 (3000 BCE to 3000 CE)
Saros Catalog of Solar Eclipses - covers Saros series -30 through 190
World Atlas of Solar Eclipse Maps - index page
Solar Eclipse Search Engine - search for solar eclipses from -1999 to +3000
Javascript Solar Eclipse Explorer - calculate all solar eclipses visible from a city

Thousand Year Canon of Solar Eclipses 1501 to 2500 - link to the publication

MrEclipse.com - eclipse resources and tips on photography
Solar Eclipses for Beginners - a primer on solar eclipse basics
MrEclipse Photo Index - an index of solar eclipse photographs

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 2912 Aug 04 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3583.2 seconds for this eclipse. The uncertainty in ΔT is 796.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 3.33°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.
