Annular Solar Eclipse of 2846 Aug 13

Fred Espenak

Introduction

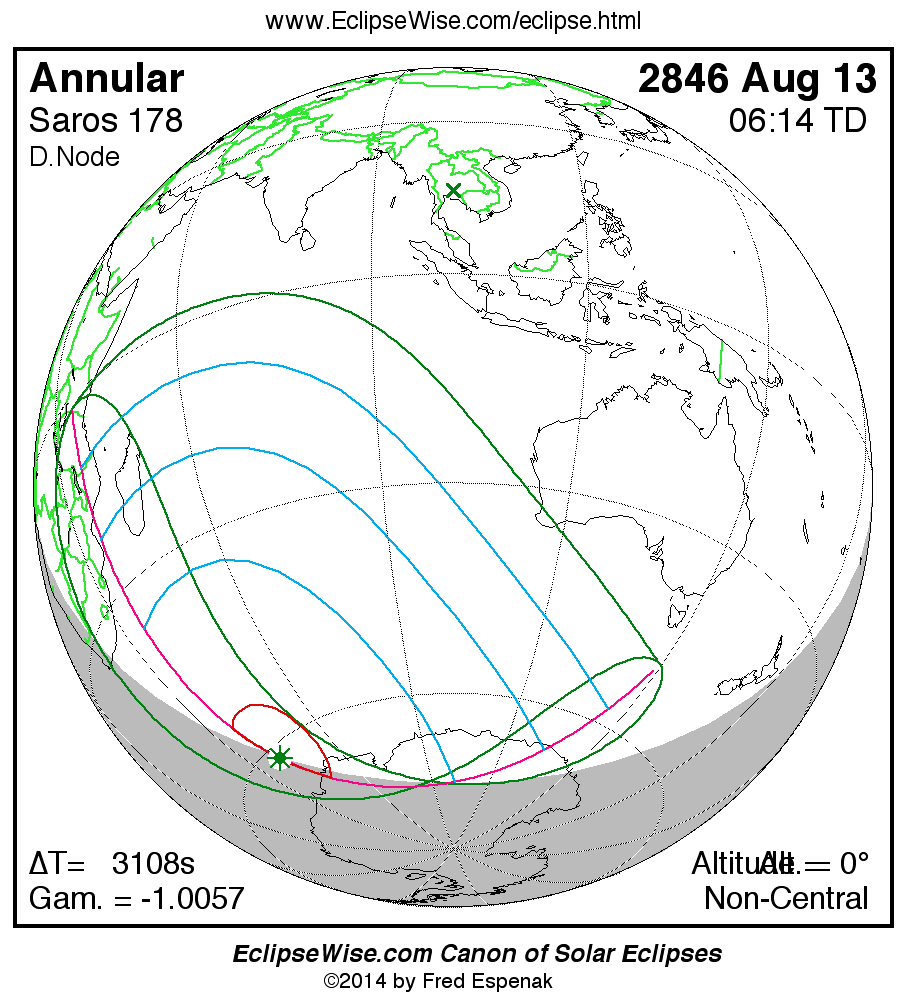

eclipse map


The Annular Solar Eclipse of 2846 Aug 13 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2846 Aug 13 at 06:13:59 TD (05:22:12 UT1). This is 1.0 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of 11424.

The eclipse belongs to Saros 178 and is number 7 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This annular eclipse is very unusual in that it is NON-CENTRAL and does NOT have a central line nor a southern path limit. Instead , over half of the antumbral shadow falls off into space throughout the eclipse. Gamma has a value of -1.0057.

The annular solar eclipse of 2846 Aug 13 is preceded two weeks earlier by a total lunar eclipse on 2846 Jul 29.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3107.5 seconds for this eclipse. The uncertainty in ΔT is 703.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.94°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2846 Aug 13 .


Eclipse Data: Annular Solar Eclipse of 2846 Aug 13

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.95231
Eclipse Obscuration -
Gamma-1.00566
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2846 Aug 13 at 06:13:59.2 TD (05:22:11.6 UT1) 2760764.723746
Ecliptic Conjunction 2846 Aug 13 at 06:25:49.9 TD (05:34:02.3 UT1) 2760764.731971
Equatorial Conjunction 2846 Aug 13 at 07:07:49.6 TD (06:16:02.0 UT1) 2760764.761135
Geocentric Coordinates of Sun and Moon
2846 Aug 13 at 06:13:59.2 TD (05:22:11.6 UT1)
Coordinate Sun Moon
Right Ascension09h34m52.4s09h33m20.7s
Declination+14°19'05.1"+13°29'42.7"
Semi-Diameter 15'45.5" 14'42.6"
Eq. Hor. Parallax 08.7" 0°53'59.3"
Geocentric Libration of Moon
Angle Value
l 0.9°
b 1.2°
c 17.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 3107.5 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 178 ( 7/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2846 Aug 13

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP103:51:40.002:59:52.515°16.9'S050°40.1'E
Last External ContactP408:35:57.907:44:10.460°59.1'S128°13.8'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N104:35:40.303:43:52.702°01.0'S036°10.7'E
South Extreme Path Limit 1S107:52:02.707:00:15.148°44.3'S149°39.7'E

Non-Central Annular Solar Eclipse

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2846 Aug 13

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU105:55:41.605:03:54.154°29.7'S036°37.1'E
Last External ContactU406:31:44.105:39:56.668°51.1'S047°54.8'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N105:55:55.205:04:07.754°25.0'S036°29.9'E
South Extreme Path Limit 1S106:31:30.305:39:42.768°54.6'S048°07.4'E

Non-Central Annular Solar Eclipse

Explanation of Umbral Shadow Contacts and Extremes Tables

Non-Central Annular Solar Eclipse

Explanation of Central Line Extremes Table

Non-Central Annular Solar Eclipse

Polynomial Besselian Elements: Annular Solar Eclipse of 2846 Aug 13

Polynomial Besselian Elements
2846 Aug 13 at 06:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.52112 -0.86816 14.3231 0.56589 0.01964 268.4139
1 0.46102 -0.20802 -0.0122 0.00003 0.00003 15.0032
2 -0.00002 -0.00004 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046079
Tan ƒ2 0.0045850

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 6.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2846 Aug 13

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2846 Aug 13 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 3107.5 seconds for this eclipse. The uncertainty in ΔT is 703.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.94°.
