Total Solar Eclipse of 2774 Jan 04

Fred Espenak

Introduction

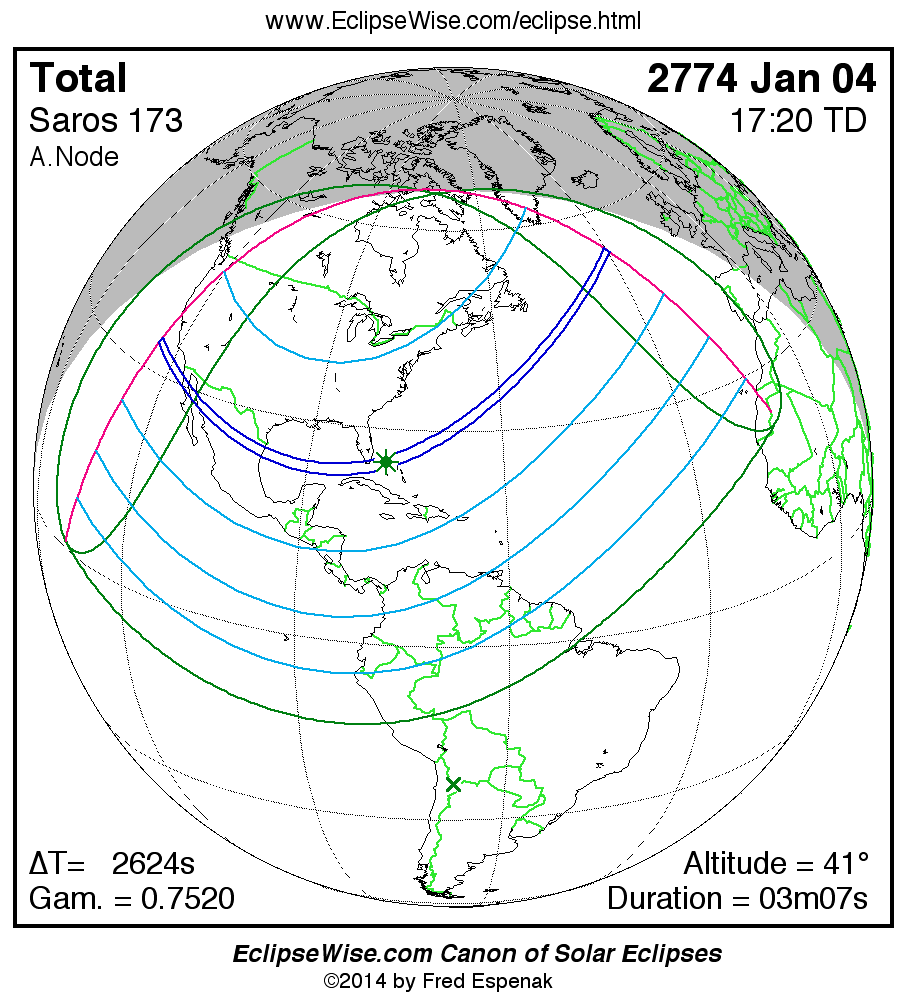

eclipse map

The Total Solar Eclipse of 2774 Jan 04 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2774 Jan 04 at 17:20:28 TD (16:36:44 UT1). This is 1.0 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Sagittarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 10526.

The eclipse belongs to Saros 173 and is number 17 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 2774 Jan 04 is preceded two weeks earlier by a partial lunar eclipse on 2773 Dec 21.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 2623.9 seconds for this eclipse. The uncertainty in ΔT is 606.2 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.53°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2774 Jan 04 .

Eclipse Data: Total Solar Eclipse of 2774 Jan 04

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.03424
Eclipse Obscuration 1.06965
Gamma 0.75205
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2774 Jan 04 at 17:20:28.2 TD (16:36:44.3 UT1) 2734246.192179
Ecliptic Conjunction 2774 Jan 04 at 17:28:09.9 TD (16:44:26.0 UT1) 2734246.197523
Equatorial Conjunction 2774 Jan 04 at 17:36:21.5 TD (16:52:37.6 UT1) 2734246.203213
Geocentric Coordinates of Sun and Moon
2774 Jan 04 at 17:20:28.2 TD (16:36:44.3 UT1)
Coordinate Sun Moon
Right Ascension18h59m53.9s18h59m14.5s
Declination-22°37'38.6"-21°52'47.1"
Semi-Diameter 16'15.2" 16'37.5"
Eq. Hor. Parallax 08.9" 1°01'01.0"
Geocentric Libration of Moon
Angle Value
l 2.1°
b -1.0°
c -4.3°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 2623.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 173 (17/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2774 Jan 04

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP115:01:04.814:17:20.916°26.3'N116°28.5'W
Last External ContactP419:39:47.218:56:03.337°13.7'N031°39.8'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N115:48:56.415:05:12.501°08.2'N135°01.8'W
South Extreme Path Limit 1S118:51:57.918:08:14.022°22.7'N011°07.9'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2774 Jan 04

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU116:11:18.815:27:34.933°50.4'N124°51.9'W
First Internal ContactU216:13:12.815:29:28.934°32.5'N124°53.7'W
Last Internal ContactU318:27:34.417:43:50.453°48.4'N029°52.6'W
Last External ContactU418:29:26.117:45:42.253°13.0'N029°30.0'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N116:12:53.915:29:09.934°39.1'N124°44.7'W
South Extreme Path Limit 1S116:11:38.415:27:54.433°43.7'N125°01.0'W
North Extreme Path Limit 2N218:27:52.917:44:09.053°53.9'N030°05.3'W
South Extreme Path Limit 2S218:29:07.017:45:23.153°07.3'N029°17.3'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2774 Jan 04

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C116:12:15.615:28:31.734°11.2'N124°52.9'W
Extreme Central Line Limit 2C218:28:30.517:44:46.553°30.6'N029°40.9'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse17:20:28.216:36:44.325°26.4'N088°54.3'W 41.0° 168.3° 174.3 km03m06.99s
Greatest Duration17:18:22.416:34:38.425°12.6'N078°40.3'W 41.0° 166.7° 174.9 km03m07.06s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2774 Jan 04

Polynomial Besselian Elements
2774 Jan 04 at 17:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.34334 0.69759 -22.6306 0.54018 -0.00595 74.2300
1 0.56660 0.11527 0.0041 0.00007 0.00006 14.9969
2 -0.00002 0.00013 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047513
Tan ƒ2 0.0047277

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 17.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2774 Jan 04

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2774 Jan 04 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 2623.9 seconds for this eclipse. The uncertainty in ΔT is 606.2 seconds corresponding to a standard error in longitude of the eclipse path of ± 2.53°.
