Introduction

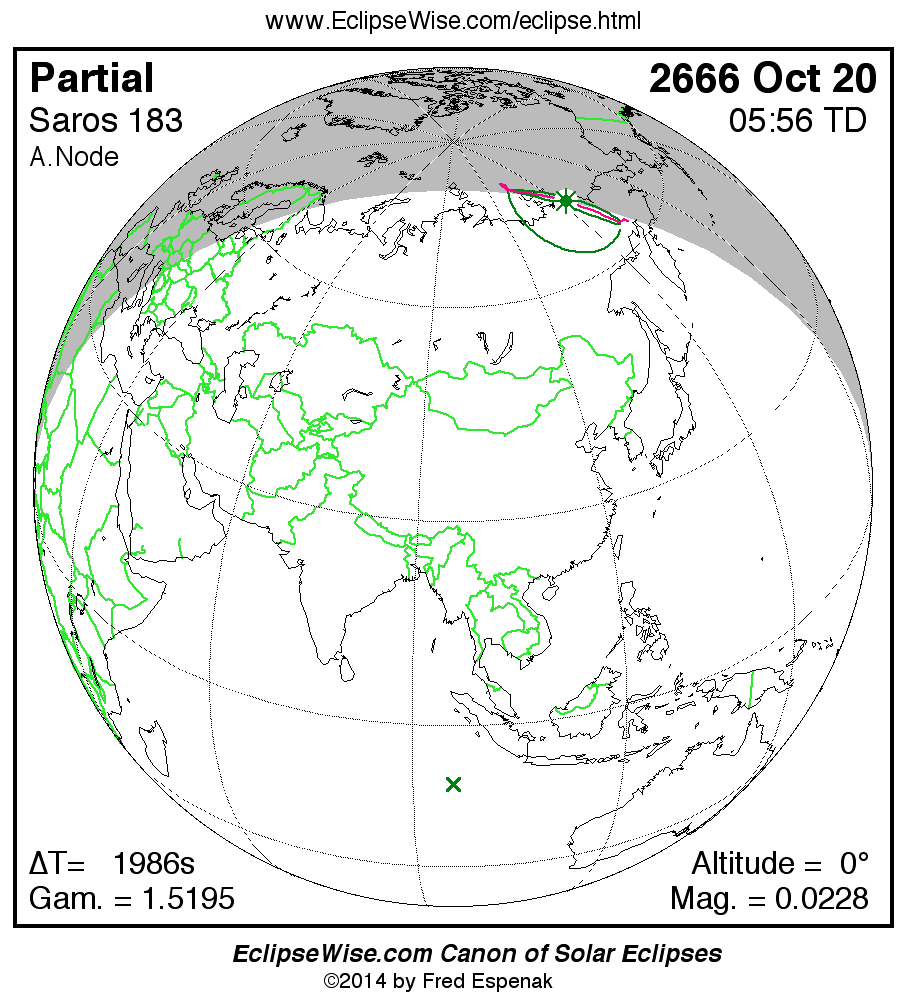

The Partial Solar Eclipse of 2666 Oct 20 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2666 Oct 20 at 05:56:25 TD (05:23:19 UT1). This is 0.3 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of 9200.

The eclipse belongs to Saros 183 and is number 1 of 72 eclipses in the series. Thus, the 2666 Oct 20 event is the very first eclipse of the series . All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is an extremely shallow partial eclipse. It has an eclipse magnitude of only 0.0228, while Gamma has a value of 1.5196. This is a very deep partial eclipse. It has an eclipse magnitude of 0.0228, while Gamma has a value of 1.5196.

The partial solar eclipse of 2666 Oct 20 is preceded two weeks earlier by a total lunar eclipse on 2666 Oct 05.

Another solar eclipse occurs one synodic month before the 2666 Oct 20 eclipse. It is the partial solar eclipse of 2666 Sep 20.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1986.1 seconds for this eclipse. The uncertainty in ΔT is 474.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.98°.

The following links provide maps and data for the eclipse.

Orthographic Map: Partial Solar Eclipse of 2666 Oct 20 - global map of eclipse visibility
Google Map: Partial Solar Eclipse of 2666 Oct 20 - interactive map of the eclipse path
Circumstances Table: Partial Solar Eclipse of 2666 Oct 20 - eclipse times for hundreds of cities
Saros 183 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 2666 Oct 20 .

Eclipse Data: Partial Solar Eclipse of 2666 Oct 20

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.02277
Eclipse Obscuration	0.00415
Gamma	1.51957

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	2666 Oct 20 at 05:56:25.5 TD (05:23:19.3 UT1)	2695088.724529
Ecliptic Conjunction	2666 Oct 20 at 06:11:08.6 TD (05:38:02.4 UT1)	2695088.734750
Equatorial Conjunction	2666 Oct 20 at 05:12:31.1 TD (04:39:24.9 UT1)	2695088.694039

Geocentric Coordinates of Sun and Moon
2666 Oct 20 at 05:56:25.5 TD (05:23:19.3 UT1)
Coordinate	Sun	Moon
Right Ascension	13h39m42.7s	13h41m24.6s
Declination	-10°18'44.9"	-08°49'07.8"
Semi-Diameter	16'00.5"	16'43.6"
Eq. Hor. Parallax	08.8"	1°01'23.4"

Geocentric Libration of Moon
Angle	Value
l	-0.5°
b	-2.0°
c	22.4°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE406
ΔT	1986.1 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	183 ( 1/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2666 Oct 20

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	05:36:57.0	05:03:50.9	76°38.8'N	140°13.4'E
Last External Contact	P4	06:16:14.2	05:43:08.1	65°06.5'N	157°19.5'E

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	05:41:31.3	05:08:25.2	77°37.8'N	133°02.7'E
South Extreme Path Limit 1	S1	06:11:43.1	05:38:36.9	63°31.7'N	160°06.9'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2666 Oct 20

Polynomial Besselian Elements
2666 Oct 20 at 06:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.44433	1.45357	-10.3169	0.53448	-0.01162	273.8047
1	0.56147	-0.15769	-0.0144	-0.00001	-0.00001	15.0034
2	-0.00001	-0.00002	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046796
Tan ƒ2	0.0046563

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 6.000

Explanation of Polynomial Besselian Elements
