Total Solar Eclipse of 2559 Jul 06

Fred Espenak

Introduction

eclipse map

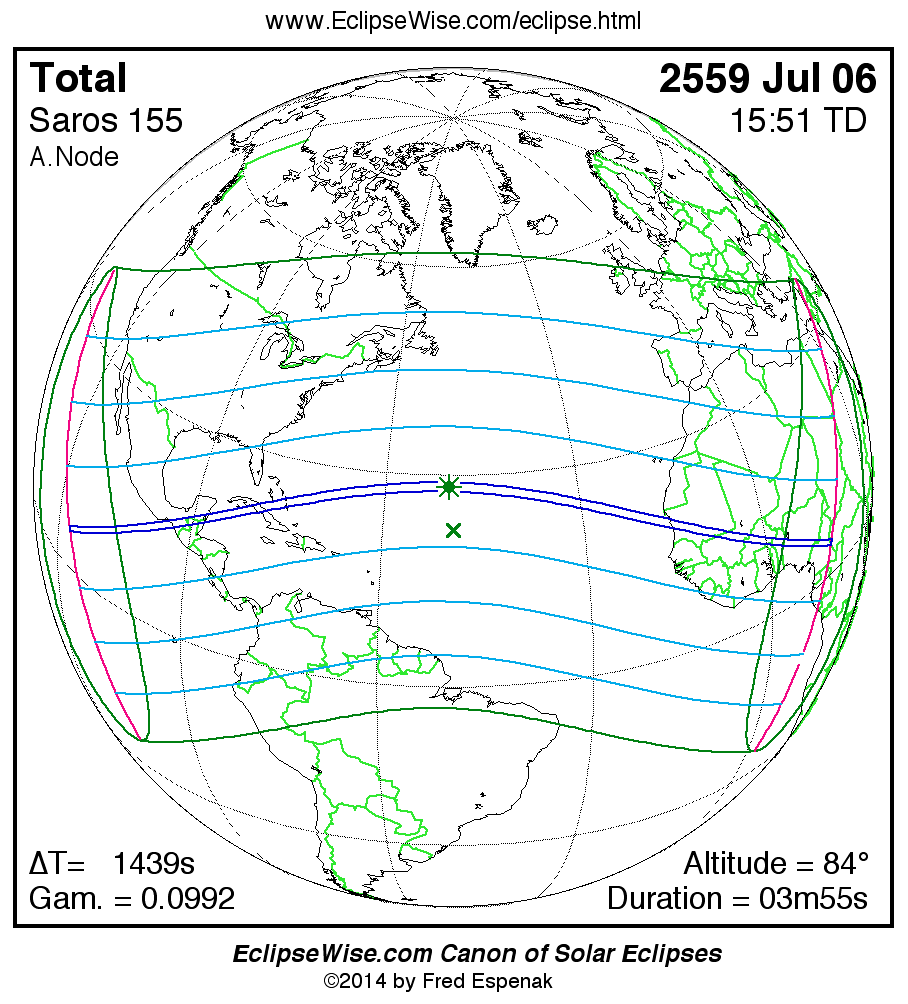

The Total Solar Eclipse of 2559 Jul 06 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2559 Jul 06 at 15:50:35 TD (15:26:36 UT1). This is 2.9 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of 7873.

The eclipse belongs to Saros 155 and is number 36 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The total solar eclipse of 2559 Jul 06 is preceded two weeks earlier by a penumbral lunar eclipse on 2559 Jun 21, and it is followed two weeks later by a penumbral lunar eclipse on 2559 Jul 20.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1439.0 seconds for this eclipse. The uncertainty in ΔT is 356.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.49°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2559 Jul 06 .


Eclipse Data: Total Solar Eclipse of 2559 Jul 06

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.04122
Eclipse Obscuration 1.08414
Gamma 0.09915
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2559 Jul 06 at 15:50:35.5 TD (15:26:36.5 UT1) 2655902.143478
Ecliptic Conjunction 2559 Jul 06 at 15:51:38.4 TD (15:27:39.4 UT1) 2655902.144206
Equatorial Conjunction 2559 Jul 06 at 15:50:28.3 TD (15:26:29.3 UT1) 2655902.143394
Geocentric Coordinates of Sun and Moon
2559 Jul 06 at 15:50:35.5 TD (15:26:36.5 UT1)
Coordinate Sun Moon
Right Ascension07h04m18.3s07h04m18.5s
Declination+22°32'42.2"+22°38'33.3"
Semi-Diameter 15'44.2" 16'07.1"
Eq. Hor. Parallax 08.7" 0°59'09.4"
Geocentric Libration of Moon
Angle Value
l -4.4°
b -0.1°
c 7.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 1439.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 155 (36/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2559 Jul 06

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP113:06:20.912:42:21.903°59.3'N100°43.5'W
First Internal ContactP215:02:36.314:38:37.312°08.1'N133°15.0'W
Last Internal ContactP316:38:35.816:14:36.810°55.9'N032°28.3'E
Last External ContactP418:34:44.818:10:45.802°47.1'N000°00.4'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:35:14.514:11:15.536°39.4'N139°17.3'W
South Extreme Path Limit 1S114:04:14.113:40:15.123°06.7'S103°19.6'W
North Extreme Path Limit 2N217:05:57.416:41:58.335°29.8'N038°15.1'E
South Extreme Path Limit 2S217:36:54.517:12:55.524°16.7'S002°30.5'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2559 Jul 06

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU114:03:36.413:39:37.405°49.6'N115°48.5'W
First Internal ContactU214:04:55.113:40:56.105°53.5'N116°09.8'W
Last Internal ContactU317:36:12.917:12:13.804°41.4'N015°25.3'E
Last External ContactU417:37:36.417:13:37.404°37.3'N015°02.6'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N114:04:26.613:40:27.606°10.8'N116°09.9'W
South Extreme Path Limit 1S114:04:05.313:40:06.305°32.2'N115°48.4'W
North Extreme Path Limit 2N217:36:43.217:12:44.204°59.8'N015°25.4'E
South Extreme Path Limit 2S217:37:05.717:13:06.704°18.8'N015°02.6'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2559 Jul 06

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C114:04:15.813:40:16.805°51.5'N115°59.1'W
Extreme Central Line Limit 2C217:36:54.617:12:55.604°39.3'N015°13.9'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse15:50:35.515:26:36.528°24.0'N056°03.8'W 84.1° 180.7° 138.7 km03m55.04s
Greatest Duration15:51:53.815:27:54.728°23.4'N049°35.0'W 84.1° 187.8° 138.7 km03m55.06s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2559 Jul 06

Polynomial Besselian Elements
2559 Jul 06 at 16:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.08918 0.09814 22.5441 0.53985 -0.00628 58.4892
1 0.56154 -0.00640 -0.0044 -0.00011 -0.00011 14.9997
2 0.00001 -0.00016 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046005
Tan ƒ2 0.0045776

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 16.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2559 Jul 06

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2559 Jul 06 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1439.0 seconds for this eclipse. The uncertainty in ΔT is 356.0 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.49°.
