Total Solar Eclipse of 2345 Jun 30

Fred Espenak

Introduction

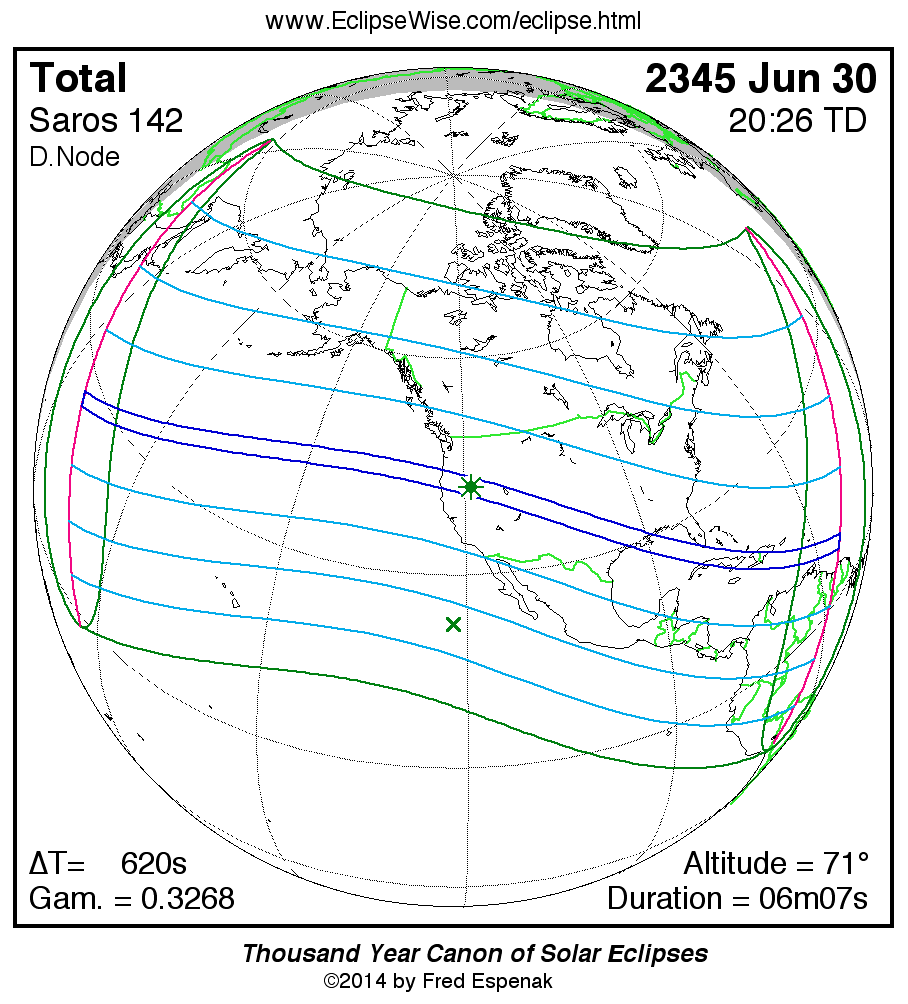

eclipse map

The Total Solar Eclipse of 2345 Jun 30 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2345 Jun 30 at 20:26:17 TD (20:15:57 UT1). This is 0.1 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Gemini. The synodic month in which the eclipse takes place has a Brown Lunation Number of 5226.

The eclipse belongs to Saros 142 and is number 41 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 2345 Jun 30 is an exceptionally long total eclipse with a duration at greatest eclipse of 06m07s. It has an eclipse magnitude of 1.0797.

The total solar eclipse of 2345 Jun 30 is followed two weeks later by a penumbral lunar eclipse on 2345 Jul 15.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 619.9 seconds for this eclipse. The uncertainty in ΔT is 162.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.68°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Solar Eclipse of 2345 Jun 30 .

Eclipse Data: Total Solar Eclipse of 2345 Jun 30

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.07973
Eclipse Obscuration 1.16581
Gamma 0.32674
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2345 Jun 30 at 20:26:16.6 TD (20:15:56.7 UT1) 2577734.344407
Ecliptic Conjunction 2345 Jun 30 at 20:22:57.9 TD (20:12:38.0 UT1) 2577734.342107
Equatorial Conjunction 2345 Jun 30 at 20:20:39.5 TD (20:10:19.6 UT1) 2577734.340504
Geocentric Coordinates of Sun and Moon
2345 Jun 30 at 20:26:16.6 TD (20:15:56.7 UT1)
Coordinate Sun Moon
Right Ascension06h39m10.0s06h39m24.4s
Declination+23°05'23.6"+23°25'07.1"
Semi-Diameter 15'44.2" 16'43.2"
Eq. Hor. Parallax 08.7" 1°01'21.6"
Geocentric Libration of Moon
Angle Value
l -0.2°
b -0.4°
c 2.4°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 619.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 142 (41/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Total Solar Eclipse of 2345 Jun 30

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP117:52:48.017:42:28.120°04.4'N176°32.6'E
First Internal ContactP219:51:53.019:41:33.148°02.7'N127°25.7'E
Last Internal ContactP321:00:48.320:50:28.431°40.7'N026°14.4'W
Last External ContactP422:59:47.522:49:27.602°34.0'N070°08.5'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N119:37:48.519:27:28.558°56.8'N114°10.7'E
South Extreme Path Limit 1S118:35:51.618:25:31.701°38.1'S175°26.5'E
North Extreme Path Limit 2N221:14:55.321:04:35.444°27.9'N020°17.3'W
South Extreme Path Limit 2S222:16:38.522:06:18.519°09.5'S068°57.9'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Total Solar Eclipse of 2345 Jun 30

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU118:47:34.218:37:14.325°56.1'N159°50.9'E
First Internal ContactU218:51:01.318:40:41.426°30.3'N158°40.6'E
Last Internal ContactU322:01:35.621:51:15.709°06.5'N052°46.1'W
Last External ContactU422:05:02.821:54:42.908°31.6'N053°53.2'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N118:50:07.418:39:47.527°04.6'N158°35.3'E
South Extreme Path Limit 1S118:48:29.718:38:09.825°21.5'N159°55.6'E
North Extreme Path Limit 2N222:02:29.621:52:09.709°41.6'N052°44.2'W
South Extreme Path Limit 2S222:04:07.121:53:47.207°56.2'N053°54.7'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Total Solar Eclipse of 2345 Jun 30

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C118:49:17.718:38:57.726°13.0'N159°15.9'E
Extreme Central Line Limit 2C222:03:19.321:52:59.408°48.8'N053°19.8'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse20:26:16.620:15:56.742°03.7'N121°17.2'W 70.7° 191.7° 272.4 km06m06.89s
Greatest Duration20:23:39.020:13:19.142°21.1'N119°58.6'W 70.6° 186.2° 272.2 km06m07.00s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Total Solar Eclipse of 2345 Jun 30

Polynomial Besselian Elements
2345 Jun 30 at 20:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.19845 0.36450 23.0902 0.53024 -0.01584 118.8802
1 0.57640 -0.09639 -0.0025 0.00001 0.00001 14.9994
2 -0.00002 -0.00019 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046000
Tan ƒ2 0.0045771

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements

Links for the Total Solar Eclipse of 2345 Jun 30

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Total Solar Eclipse of 2345 Jun 30 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 619.9 seconds for this eclipse. The uncertainty in ΔT is 162.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.68°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
