Annular Solar Eclipse of 2290 Dec 02

Fred Espenak

Introduction

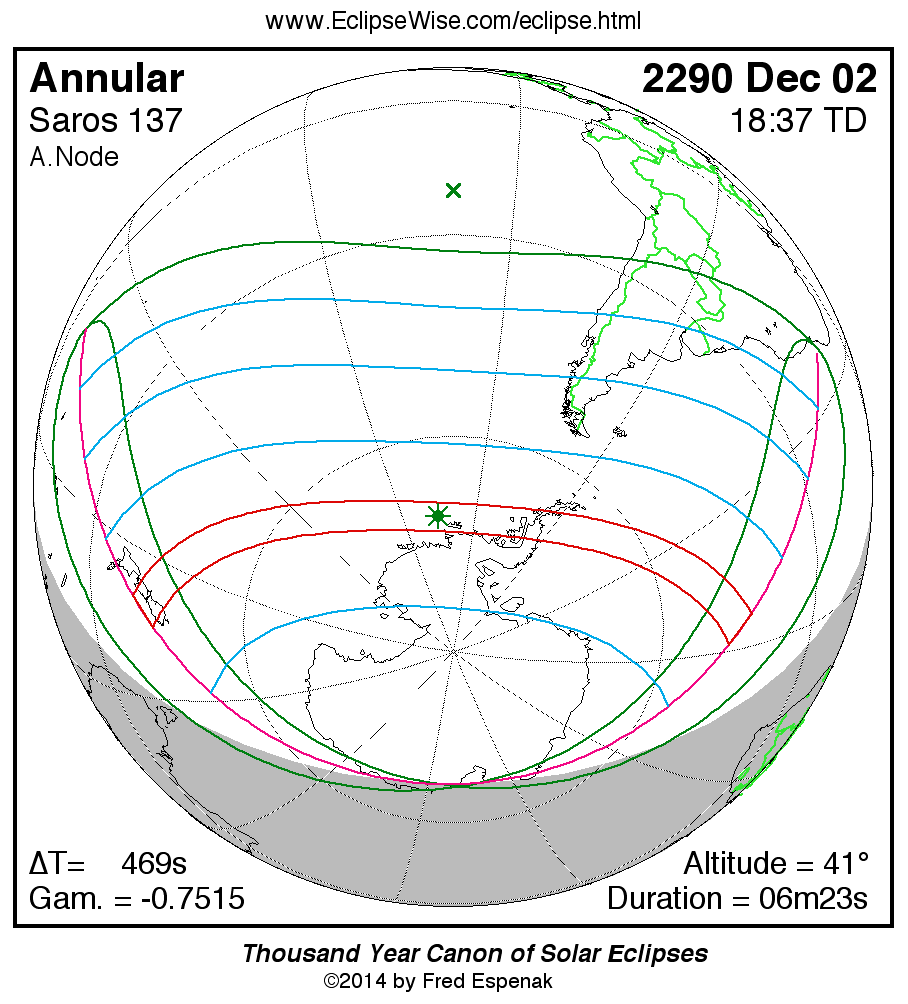

eclipse map

The Annular Solar Eclipse of 2290 Dec 02 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2290 Dec 02 at 18:36:40 TD (18:28:51 UT1). This is 3.0 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Scorpius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 4551.

The eclipse belongs to Saros 137 and is number 51 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 2290 Dec 02 is a relatively long annular eclipse with a duration at greatest eclipse of 06m23s. It has an eclipse magnitude of 0.9237.

The annular solar eclipse of 2290 Dec 02 is followed two weeks later by a partial lunar eclipse on 2290 Dec 17.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 469.1 seconds for this eclipse. The uncertainty in ΔT is 122.6 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.51°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 2290 Dec 02 .

Eclipse Data: Annular Solar Eclipse of 2290 Dec 02

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.92375
Eclipse Obscuration 0.85331
Gamma-0.75148
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2290 Dec 02 at 18:36:40.5 TD (18:28:51.4 UT1) 2557801.270040
Ecliptic Conjunction 2290 Dec 02 at 18:27:45.1 TD (18:19:56.0 UT1) 2557801.263843
Equatorial Conjunction 2290 Dec 02 at 18:40:28.9 TD (18:32:39.8 UT1) 2557801.272683
Geocentric Coordinates of Sun and Moon
2290 Dec 02 at 18:36:40.5 TD (18:28:51.4 UT1)
Coordinate Sun Moon
Right Ascension16h35m47.0s16h35m39.4s
Declination-21°59'31.2"-22°40'15.9"
Semi-Diameter 16'12.5" 14'49.7"
Eq. Hor. Parallax 08.9" 0°54'25.1"
Geocentric Libration of Moon
Angle Value
l -2.5°
b 0.9°
c 9.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 469.1 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 137 (51/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2290 Dec 02

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP115:53:46.915:45:57.924°09.4'S159°39.6'W
Last External ContactP421:19:28.921:11:39.828°38.5'S037°53.5'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N116:28:28.816:20:39.707°49.7'S161°05.2'W
South Extreme Path Limit 1S120:44:49.820:37:00.712°24.8'S036°52.8'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 2290 Dec 02

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU117:14:32.117:06:43.140°51.8'S170°08.6'E
First Internal ContactU217:23:47.217:15:58.143°47.3'S165°30.3'E
Last Internal ContactU319:49:32.419:41:43.447°55.7'S001°34.6'W
Last External ContactU419:58:44.419:50:55.345°06.0'S006°32.7'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N117:15:23.717:07:34.740°22.5'S170°17.6'E
South Extreme Path Limit 1S117:23:00.417:15:11.444°13.9'S165°19.4'E
North Extreme Path Limit 2N219:57:53.119:50:04.044°37.6'S006°44.8'W
South Extreme Path Limit 2S219:50:18.919:42:29.948°21.3'S001°20.2'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 2290 Dec 02

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C117:19:05.017:11:15.942°16.2'S167°55.2'E
Extreme Central Line Limit 2C219:54:13.219:46:24.146°27.7'S004°10.3'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse18:36:40.518:28:51.470°54.7'S107°33.0'W 41.0° 6.9° 438.9 km06m23.29s
Greatest Duration18:36:20.818:28:31.770°53.5'S105°59.4'W 41.0° 7.5° 438.9 km06m23.29s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 2290 Dec 02

Polynomial Besselian Elements
2290 Dec 02 at 19:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.16533 -0.75925 -21.9925 0.57190 0.02561 107.7392
1 0.50822 -0.02169 -0.0060 -0.00007 -0.00007 14.9974
2 0.00001 0.00017 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047397
Tan ƒ2 0.0047161

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 19.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 2290 Dec 02

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 2290 Dec 02 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 469.1 seconds for this eclipse. The uncertainty in ΔT is 122.6 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.51°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
