Annular Solar Eclipse of 1670 Oct 13

Fred Espenak

Introduction

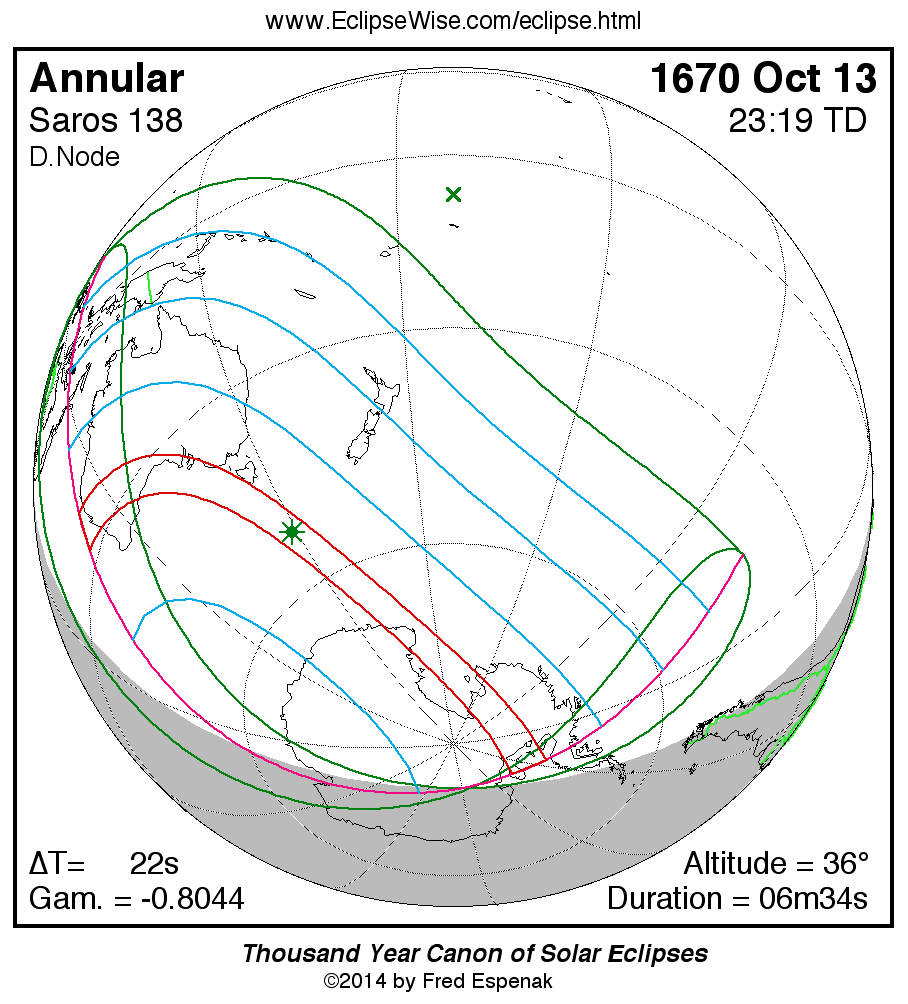

The Annular Solar Eclipse of 1670 Oct 13 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1670 Oct 13 at 23:18:60 TD (23:18:37 UT1). This is 1.4 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -3119.

The eclipse belongs to Saros 138 and is number 12 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of 1670 Oct 13 is a relatively long annular eclipse with a duration at greatest eclipse of 06m34s. It has an eclipse magnitude of 0.9247.

The annular solar eclipse of 1670 Oct 13 is preceded two weeks earlier by a partial lunar eclipse on 1670 Sep 29.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 22.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Orthographic Map: Annular Solar Eclipse of 1670 Oct 13 - global map of eclipse visibility
Google Map: Annular Solar Eclipse of 1670 Oct 13 - interactive map of the eclipse path
Path Table: Annular Solar Eclipse of 1670 Oct 13 - coordinates of the central line and path limits
Circumstances Table: Annular Solar Eclipse of 1670 Oct 13 - eclipse times for hundreds of cities
Saros 138 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1670 Oct 13 .

Eclipse Data: Annular Solar Eclipse of 1670 Oct 13

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.92473
Eclipse Obscuration	0.85513
Gamma	-0.80434

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	1670 Oct 13 at 23:18:59.5 TD (23:18:37.2 UT1)	2331301.471264
Ecliptic Conjunction	1670 Oct 13 at 23:28:32.9 TD (23:28:10.6 UT1)	2331301.477901
Equatorial Conjunction	1670 Oct 14 at 00:09:22.5 TD (00:09:00.2 UT1)	2331301.506252

Geocentric Coordinates of Sun and Moon
1670 Oct 13 at 23:18:59.5 TD (23:18:37.2 UT1)
Coordinate	Sun	Moon
Right Ascension	13h17m07.5s	13h15m45.7s
Declination	-08°09'53.2"	-08°48'13.2"
Semi-Diameter	16'03.7"	14'43.5"
Eq. Hor. Parallax	08.8"	0°54'02.3"

Geocentric Libration of Moon
Angle	Value
l	-1.1°
b	1.0°
c	20.6°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE406
ΔT	22.3 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	138 (12/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1670 Oct 13

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	20:38:35.7	20:38:13.4	02°57.1'S	136°34.1'E
Last External Contact	P4	01:59:02.0	01:58:39.8	57°50.3'S	109°53.1'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	21:18:35.1	21:18:12.8	14°11.8'N	129°03.7'E
South Extreme Path Limit 1	S1	01:19:13.7	01:18:51.4	41°02.9'S	105°59.0'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1670 Oct 13

Contacts of Umbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	U1	22:03:36.1	22:03:13.8	23°48.0'S	112°06.9'E
First Internal Contact	U2	22:13:40.0	22:13:17.7	27°40.9'S	108°54.5'E
Last Internal Contact	U3	00:23:47.6	00:23:25.3	79°41.2'S	047°08.8'W
Last External Contact	U4	00:33:51.8	00:33:29.5	76°56.3'S	063°32.5'W

Extreme Northern and Southern Path Limits of Umbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	22:04:30.2	22:04:07.9	23°18.6'S	111°58.3'E
South Extreme Path Limit 1	S1	22:12:51.9	22:12:29.7	28°07.4'S	109°01.7'E
North Extreme Path Limit 2	N2	00:32:57.7	00:32:35.4	76°33.4'S	064°38.3'W
South Extreme Path Limit 2	S2	00:24:35.2	00:24:12.9	79°56.8'S	045°20.8'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1670 Oct 13

Extreme Limits of the Central Line
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
Extreme Central Line Limit 1	C1	22:08:31.0	22:08:08.7	25°38.8'S	110°33.8'E
Extreme Central Line Limit 2	C2	00:28:56.8	00:28:34.5	78°19.7'S	056°30.9'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event	Time TD	Time UT1	Latitude	Longitude	Sun Altitude	Sun Azimuth	Path Width	Central Duration
Greatest Eclipse	23:18:59.5	23:18:37.2	52°21.1'S	148°59.0'E	36.2°	48.7°	467.0 km	06m34.33s
Greatest Duration	23:21:54.7	23:21:32.4	53°25.3'S	149°51.8'E	36.1°	46.5°	463.2 km	06m34.39s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1670 Oct 13

Polynomial Besselian Elements
1670 Oct 13 at 23:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	-0.51660	-0.63689	-8.1583	0.57128	0.02500	168.4630
1	0.44675	-0.23565	-0.0150	-0.00002	-0.00002	15.0034
2	0.00004	0.00007	0.0000	-0.00001	-0.00001	-0.0000
3	-0.00000	0.00000	-	-	-	-

Tan ƒ1	0.0046965
Tan ƒ2	0.0046731

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Polynomial Besselian Elements
