Hybrid Solar Eclipse of 1509 Nov 12

Fred Espenak

Introduction

eclipse map

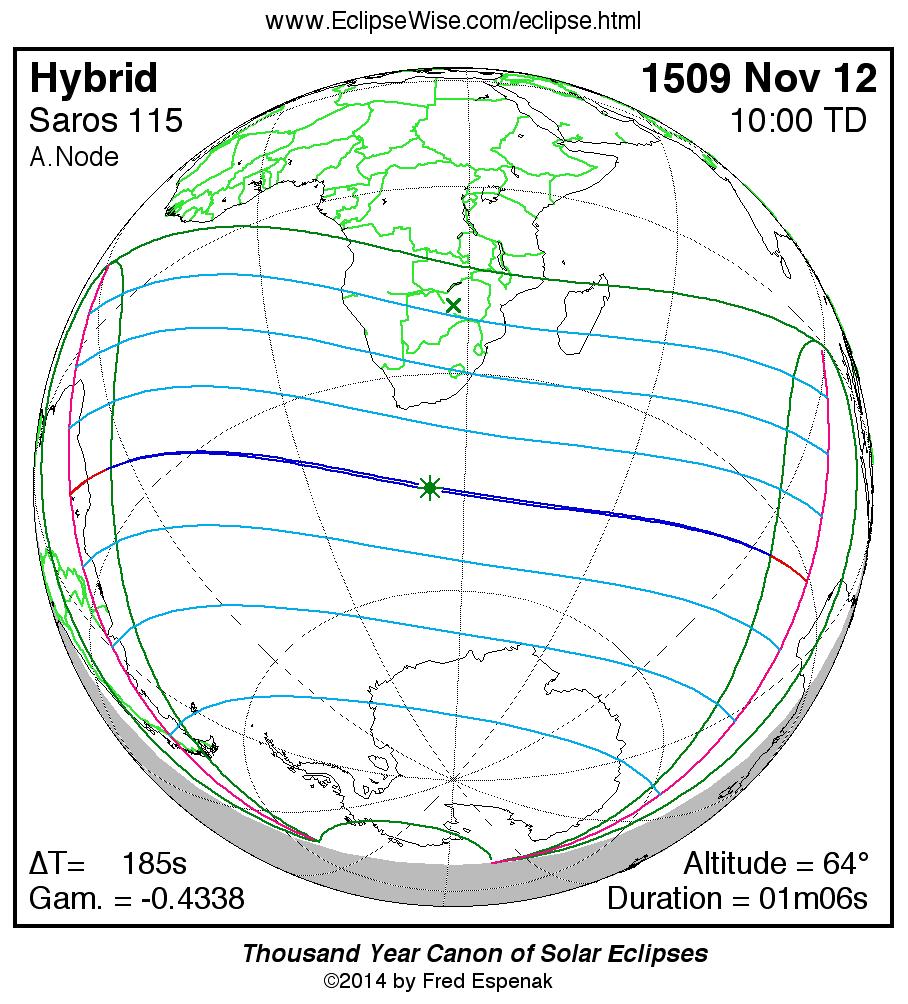

The Hybrid Solar Eclipse of 1509 Nov 12 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1509 Nov 12 at 10:00:13 TD (09:57:08 UT1). This is 2.6 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Scorpius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -5109.

The eclipse belongs to Saros 115 and is number 48 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 1509 Nov 12 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as annular. Further down the track it changes to total and then back to annular before the path ends.

The hybrid solar eclipse of 1509 Nov 12 is followed two weeks later by a partial lunar eclipse on 1509 Nov 26.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 185.1 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of 1509 Nov 12 .

Eclipse Data: Hybrid Solar Eclipse of 1509 Nov 12

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.01310
Eclipse Obscuration 1.02637
Gamma-0.43376
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1509 Nov 12 at 10:00:13.0 TD (09:57:07.9 UT1) 2272535.914675
Ecliptic Conjunction 1509 Nov 12 at 09:55:36.2 TD (09:52:31.0 UT1) 2272535.911470
Equatorial Conjunction 1509 Nov 12 at 10:05:41.4 TD (10:02:36.3 UT1) 2272535.918476
Geocentric Coordinates of Sun and Moon
1509 Nov 12 at 10:00:13.0 TD (09:57:07.9 UT1)
Coordinate Sun Moon
Right Ascension15h49m18.7s15h49m05.8s
Declination-20°06'17.8"-20°31'49.5"
Semi-Diameter 16'13.2" 16'11.4"
Eq. Hor. Parallax 08.9" 0°59'25.0"
Geocentric Libration of Moon
Angle Value
l -4.0°
b 0.6°
c 14.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 185.1 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 115 (48/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 1509 Nov 12

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP107:21:39.607:18:34.408°58.0'S026°15.9'W
First Internal ContactP209:47:11.809:44:06.760°18.2'S099°15.6'W
Last Internal ContactP310:13:06.810:10:01.668°08.2'S179°59.4'W
Last External ContactP412:38:38.912:35:33.821°37.7'S086°09.4'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N108:04:34.808:01:29.712°08.1'N029°10.7'W
South Extreme Path Limit 1S109:42:11.409:39:06.363°47.3'S106°06.3'W
North Extreme Path Limit 2N211:55:51.111:52:45.900°36.7'S088°43.6'E
South Extreme Path Limit 2S210:18:06.310:15:01.269°34.0'S167°46.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of 1509 Nov 12

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU108:23:57.208:20:52.017°49.7'S045°17.2'W
First Internal ContactU208:24:09.208:21:04.117°52.4'S045°21.3'W
Last Internal ContactU311:36:14.911:33:09.730°24.2'S105°48.7'E
Last External ContactU411:36:22.211:33:17.030°22.6'S105°46.1'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N108:23:59.908:20:54.717°48.0'S045°17.2'W
South Extreme Path Limit 1S108:24:06.508:21:01.417°54.1'S045°21.3'W
North Extreme Path Limit 2N211:36:20.511:33:15.430°21.6'S105°46.0'E
South Extreme Path Limit 2S211:36:16.511:33:11.430°25.2'S105°48.8'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of 1509 Nov 12

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C108:24:03.208:20:58.117°51.1'S045°19.2'W
Extreme Central Line Limit 2C211:36:18.511:33:13.430°23.4'S105°47.4'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse10:00:13.009:57:07.945°49.1'S022°26.9'E 64.1° 9.0° 50.1 km01m06.46s
Greatest Duration10:03:26.710:00:21.546°04.7'S024°52.5'E 64.0° 3.7° 50.1 km01m06.53s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of 1509 Nov 12

Polynomial Besselian Elements
1509 Nov 12 at 10:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.05295 -0.43052 -20.1038 0.54687 0.00071 333.3140
1 0.55825 -0.06600 -0.0089 -0.00010 -0.00010 14.9986
2 0.00003 0.00016 0.0000 -0.00001 -0.00001 -0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0047419
Tan ƒ2 0.0047183

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 10.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of 1509 Nov 12

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of 1509 Nov 12 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 185.1 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
