Solar Eclipse Prime Page

Partial Solar Eclipse of 0929 Jul 09

Fred Espenak

Introduction

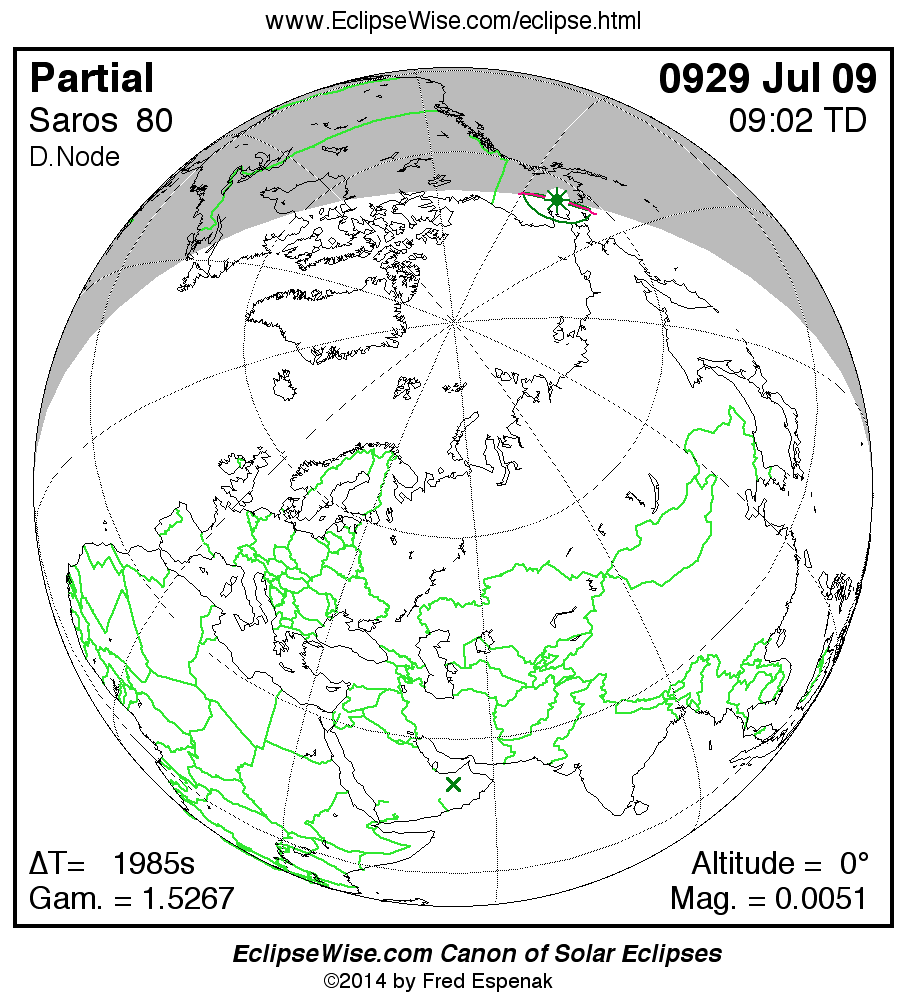

The Partial Solar Eclipse of 0929 Jul 09 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 0929 Jul 09 at 09:01:57 TD (08:28:52 UT1). This is 1.0 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Cancer. The synodic month in which the eclipse takes place has a Brown Lunation Number of -12287.

The eclipse belongs to Saros 80 and is number 71 of 71 eclipses in the series. Thus, the 0929 Jul 09 event is the last eclipse of the series . All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This is an extremely shallow partial eclipse. It has an eclipse magnitude of only 0.0051, while Gamma has a value of 1.5267. This is a very deep partial eclipse. It has an eclipse magnitude of 0.0051, while Gamma has a value of 1.5267.

The partial solar eclipse of 0929 Jul 09 is followed two weeks later by a total lunar eclipse on 0929 Jul 24.

Another solar eclipse occurs one synodic month after the 0929 Jul 09 eclipse. It is the partial solar eclipse of 0929 Aug 07.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1984.5 seconds for this eclipse. The uncertainty in ΔT is 63.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.27°.

The following links provide maps and data for the eclipse.

Orthographic Map: Partial Solar Eclipse of 0929 Jul 09 - global map of eclipse visibility
Google Map: Partial Solar Eclipse of 0929 Jul 09 - interactive map of the eclipse path
Circumstances Table: Partial Solar Eclipse of 0929 Jul 09 - eclipse times for hundreds of cities
Saros 80 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 0929 Jul 09 .

Eclipse Data: Partial Solar Eclipse of 0929 Jul 09

Eclipse Characteristics
Parameter	Value
Eclipse Magnitude	0.00506
Eclipse Obscuration	0.00044
Gamma	1.52668

Conjunction Times
Event	Calendar Date and Time	Julian Date
Greatest Eclipse	0929 Jul 09 at 09:01:56.5 TD (08:28:52.0 UT1)	2060564.853380
Ecliptic Conjunction	0929 Jul 09 at 08:47:11.2 TD (08:14:06.7 UT1)	2060564.843133
Equatorial Conjunction	0929 Jul 09 at 08:21:50.9 TD (07:48:46.4 UT1)	2060564.825537

Geocentric Coordinates of Sun and Moon
0929 Jul 09 at 09:01:56.5 TD (08:28:52.0 UT1)
Coordinate	Sun	Moon
Right Ascension	07h31m15.9s	07h32m55.7s
Declination	+21°54'55.6"	+23°24'54.8"
Semi-Diameter	15'45.1"	16'36.9"
Eq. Hor. Parallax	08.7"	1°00'58.8"

Geocentric Libration of Moon
Angle	Value
l	2.3°
b	-2.0°
c	7.7°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE406
ΔT	1984.5 s
k (penumbra)	0.2725076
k (umbra)	0.2722810
Saros Series	80 (71/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 0929 Jul 09

Contacts of Penumbral Shadow with Earth
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
First External Contact	P1	08:52:49.6	08:19:45.1	65°38.9'N	151°21.6'W
Last External Contact	P4	09:11:22.3	08:38:17.8	62°10.6'N	169°03.8'W

Extreme Northern and Southern Path Limits of Penumbra
Contact Event	Contact	Time TD	Time UT1	Latitude	Longitude
North Extreme Path Limit 1	N1	08:54:05.8	08:21:01.3	65°57.6'N	150°00.4'W
South Extreme Path Limit 1	S1	09:10:09.5	08:37:05.0	61°41.3'N	170°06.8'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 0929 Jul 09

Polynomial Besselian Elements
0929 Jul 09 at 09:00:00.0 TD (=t0)
n	x	y	d	l1	l2	μ
0	0.35792	1.48425	21.9121	0.53201	-0.01408	314.1641
1	0.56285	-0.14307	-0.0058	0.00005	0.00005	15.0001
2	-0.00007	-0.00023	-0.0000	-0.00001	-0.00001	0.0000
3	-0.00001	0.00000	-	-	-	-

Tan ƒ1	0.0046045
Tan ƒ2	0.0045816

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 9.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 0929 Jul 09

Orthographic Map: Partial Solar Eclipse of 0929 Jul 09 - global map of eclipse visibility
Google Map: Partial Solar Eclipse of 0929 Jul 09 - interactive map of the eclipse path
Circumstances Table: Partial Solar Eclipse of 0929 Jul 09 - eclipse times for hundreds of cities
Saros 80 Table - data for all eclipses in the Saros series
Partial Solar Eclipse of 0929 Jul 09 - Google search for links to this eclipse

Links to Additional Solar Eclipse Information

Home - home page of EclipseWise with predictions for both solar and lunar eclipses

Solar Eclipses - primary page for solar eclipse predictions
Solar Eclipse Links - detailed directory of links

Six Millennium Catalog of Solar Eclipses - covers the years -2999 to +3000 (3000 BCE to 3000 CE)
Saros Catalog of Solar Eclipses - covers Saros series -30 through 190
World Atlas of Solar Eclipse Maps - index page
Solar Eclipse Search Engine - search for solar eclipses from -1999 to +3000
Javascript Solar Eclipse Explorer - calculate all solar eclipses visible from a city

Thousand Year Canon of Solar Eclipses 1501 to 2500 - link to the publication

MrEclipse.com - eclipse resources and tips on photography
Solar Eclipses for Beginners - a primer on solar eclipse basics
MrEclipse Photo Index - an index of solar eclipse photographs

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 0929 Jul 09 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 1984.5 seconds for this eclipse. The uncertainty in ΔT is 63.4 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.27°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
