Partial Solar Eclipse of 0144 Sep 15

Fred Espenak

Introduction

eclipse map

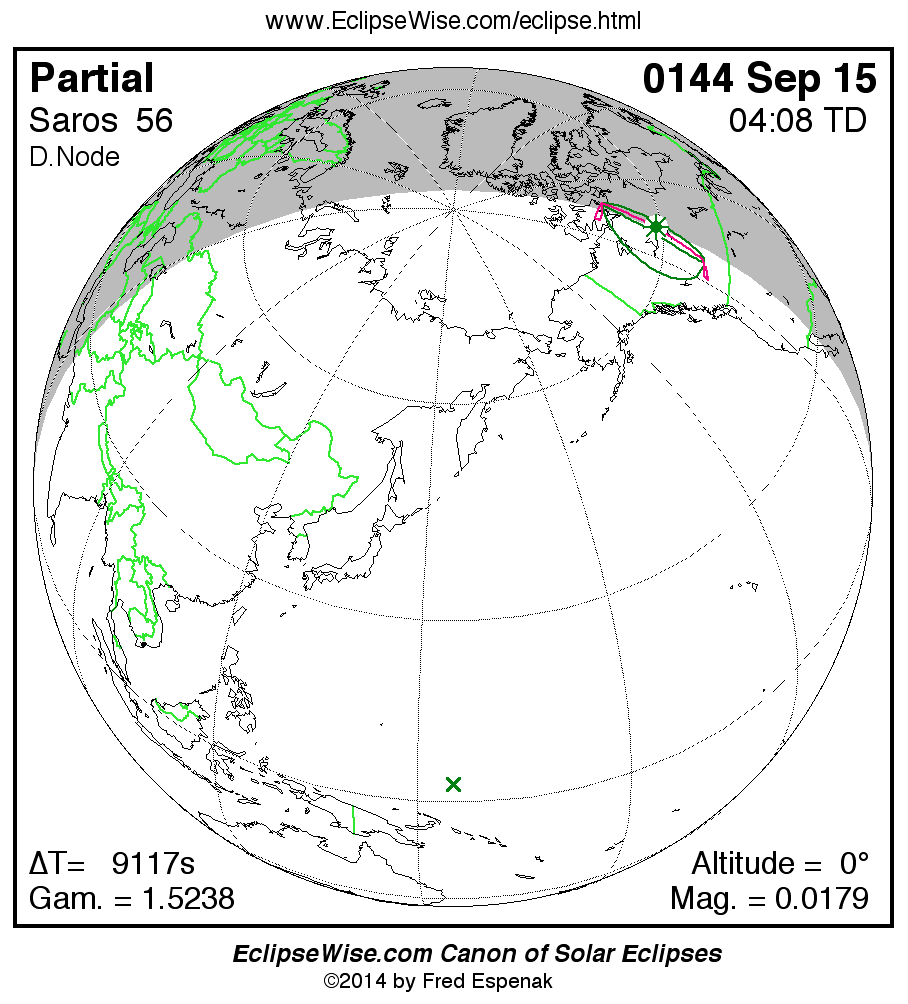

The Partial Solar Eclipse of 0144 Sep 15 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 0144 Sep 15 at 04:07:53 TD (01:35:58 UT1). This is 0.6 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Virgo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -21994.

The eclipse belongs to Saros 56 and is number 74 of 74 eclipses in the series. Thus, the 0144 Sep 15 event is the last eclipse of the series . All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This is an extremely shallow partial eclipse. It has an eclipse magnitude of only 0.0179, while Gamma has a value of 1.5238. This is a very deep partial eclipse. It has an eclipse magnitude of 0.0179, while Gamma has a value of 1.5238.

The partial solar eclipse of 0144 Sep 15 is followed two weeks later by a total lunar eclipse on 0144 Sep 29.

Another solar eclipse occurs one synodic month after the 0144 Sep 15 eclipse. It is the partial solar eclipse of 0144 Oct 14.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 9115.9 seconds for this eclipse. The uncertainty in ΔT is 224.5 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.94°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 0144 Sep 15 .

Eclipse Data: Partial Solar Eclipse of 0144 Sep 15

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.01789
Eclipse Obscuration 0.00289
Gamma 1.52378
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 0144 Sep 15 at 04:07:53.4 TD (01:35:57.6 UT1) 1773911.566639
Ecliptic Conjunction 0144 Sep 15 at 03:52:59.8 TD (01:21:03.9 UT1) 1773911.556295
Equatorial Conjunction 0144 Sep 15 at 02:41:22.4 TD (00:09:26.6 UT1) 1773911.506557
Geocentric Coordinates of Sun and Moon
0144 Sep 15 at 04:07:53.4 TD (01:35:57.6 UT1)
Coordinate Sun Moon
Right Ascension11h27m20.0s11h30m20.3s
Declination+03°33'53.2"+04°55'25.4"
Semi-Diameter 16'02.8" 16'41.2"
Eq. Hor. Parallax 08.8" 1°01'14.5"
Geocentric Libration of Moon
Angle Value
l -0.9°
b -2.0°
c 22.0°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 9115.9 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 56 (74/74)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 0144 Sep 15

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP103:50:39.701:18:43.867°17.4'N102°16.3'W
Last External ContactP404:25:40.801:53:45.054°43.8'N114°33.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N103:53:53.301:21:57.468°44.2'N102°25.7'W
South Extreme Path Limit 1S104:22:34.001:50:38.153°09.6'N114°03.2'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 0144 Sep 15

Polynomial Besselian Elements
0144 Sep 15 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.66789 1.37174 3.5636 0.53574 -0.01036 241.2567
1 0.50963 -0.28055 -0.0158 -0.00003 -0.00003 15.0043
2 -0.00005 -0.00010 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046907
Tan ƒ2 0.0046673

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 0144 Sep 15

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 0144 Sep 15 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 9115.9 seconds for this eclipse. The uncertainty in ΔT is 224.5 seconds corresponding to a standard error in longitude of the eclipse path of ± 0.94°.
