Annular Solar Eclipse of -1676 Aug 08 (1677 Aug 08 BCE)

Fred Espenak

Introduction

eclipse map

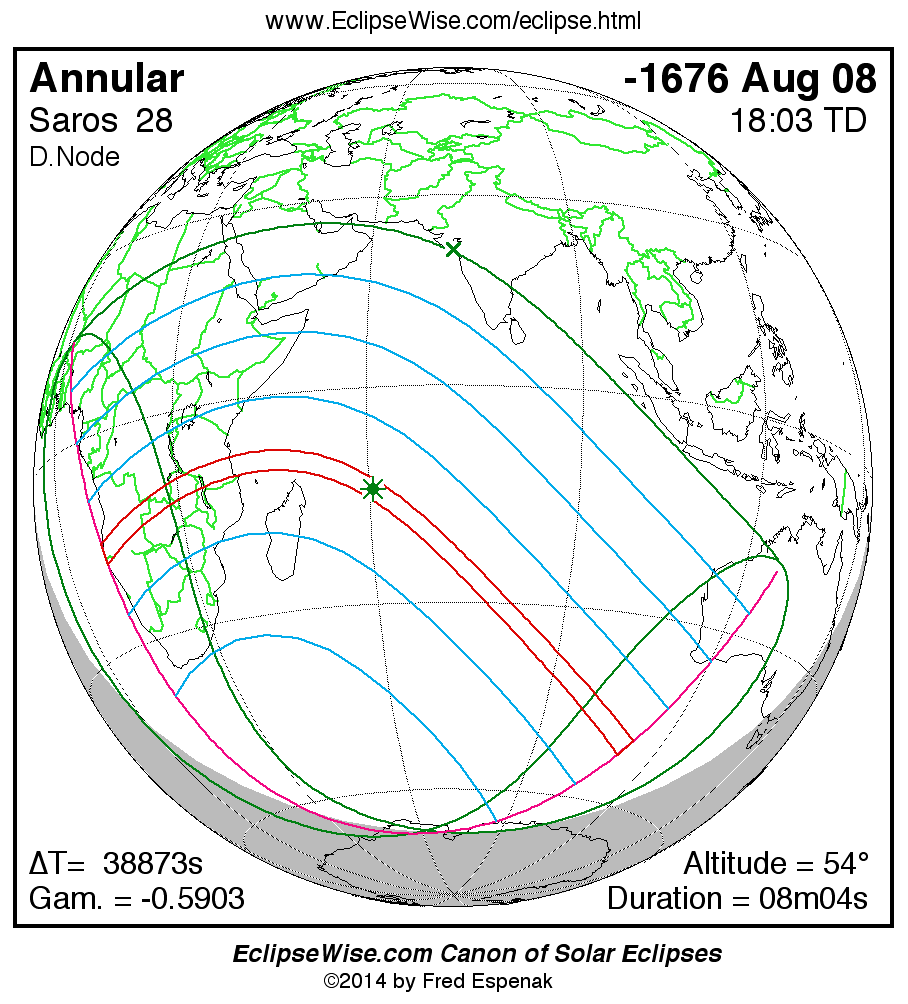

The Annular Solar Eclipse of -1676 Aug 08 (1677 Aug 08 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -1676 Aug 08 at 18:03:25 TD (07:15:37 UT1). This is 2.2 days after the Moon reaches apogee. During the eclipse, the Sun is in the constellation Leo. The synodic month in which the eclipse takes place has a Brown Lunation Number of -44506.

The eclipse belongs to Saros 28 and is number 14 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The solar eclipse of -1676 Aug 08 is a relatively long annular eclipse with a duration at greatest eclipse of 08m04s. It has an eclipse magnitude of 0.9371.

The annular solar eclipse of -1676 Aug 08 is preceded two weeks earlier by a partial lunar eclipse on -1676 Jul 24.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38868.1 seconds for this eclipse. The uncertainty in ΔT is 2481.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 10.37°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of -1676 Aug 08 .

Eclipse Data: Annular Solar Eclipse of -1676 Aug 08

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.93709
Eclipse Obscuration 0.87814
Gamma-0.59023
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -1676 Aug 08 at 18:03:25.4 TD (07:15:37.3 UT1) 1109118.802515
Ecliptic Conjunction -1676 Aug 08 at 18:10:25.4 TD (07:22:37.3 UT1) 1109118.807376
Equatorial Conjunction -1676 Aug 08 at 18:26:36.7 TD (07:38:48.6 UT1) 1109118.818618
Geocentric Coordinates of Sun and Moon
-1676 Aug 08 at 18:03:25.4 TD (07:15:37.3 UT1)
Coordinate Sun Moon
Right Ascension08h10m50.8s08h10m08.1s
Declination+20°26'22.8"+19°56'06.1"
Semi-Diameter 15'56.9" 14'46.0"
Eq. Hor. Parallax 08.8" 0°54'11.5"
Geocentric Libration of Moon
Angle Value
l -1.2°
b 0.8°
c 11.2°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 38868.1 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 28 (14/72)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1676 Aug 08

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP115:11:31.204:23:43.203°33.2'S025°58.0'E
Last External ContactP420:55:07.610:07:19.637°40.1'S102°02.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N116:17:05.405:29:17.415°35.8'N002°16.1'E
South Extreme Path Limit 1S119:49:44.809:01:56.718°56.7'S127°44.3'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of -1676 Aug 08

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU116:24:44.705:36:56.715°55.4'S012°26.4'E
First Internal ContactU216:31:14.305:43:26.317°39.6'S011°31.7'E
Last Internal ContactU319:35:22.208:47:34.150°46.4'S111°31.9'E
Last External ContactU419:41:50.208:54:02.149°13.1'S111°28.9'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N116:26:33.105:38:45.015°19.8'S011°44.9'E
South Extreme Path Limit 1S116:29:30.205:41:42.118°14.0'S012°12.0'E
North Extreme Path Limit 2N219:40:02.708:52:14.648°41.0'S112°26.4'E
South Extreme Path Limit 2S219:37:05.308:49:17.251°16.8'S110°33.9'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of -1676 Aug 08

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C116:27:58.405:40:10.316°46.1'S011°58.7'E
Extreme Central Line Limit 2C219:38:37.408:50:49.349°58.6'S111°32.2'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse18:03:25.407:15:37.314°09.6'S101°47.3'W 53.7° 17.7° 285.9 km08m04.41s
Greatest Duration17:51:06.907:03:18.812°28.6'S057°47.3'E 53.1° 27.1° 292.8 km08m06.52s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of -1676 Aug 08

Polynomial Besselian Elements
-1676 Aug 08 at 18:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.21345 -0.55104 20.4415 0.56835 0.02208 89.8751
1 0.48128 -0.15980 -0.0086 -0.00004 -0.00004 14.9998
2 -0.00003 -0.00010 -0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 0.00000 - - - -
Tan ƒ1 0.0046635
Tan ƒ2 0.0046402

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 18.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of -1676 Aug 08 (1677 Aug 08 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of -1676 Aug 08 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 38868.1 seconds for this eclipse. The uncertainty in ΔT is 2481.3 seconds corresponding to a standard error in longitude of the eclipse path of ± 10.37°.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
