Hybrid Solar Eclipse of -0224 Dec 31 (0225 Dec 31 BCE)

Fred Espenak

Introduction

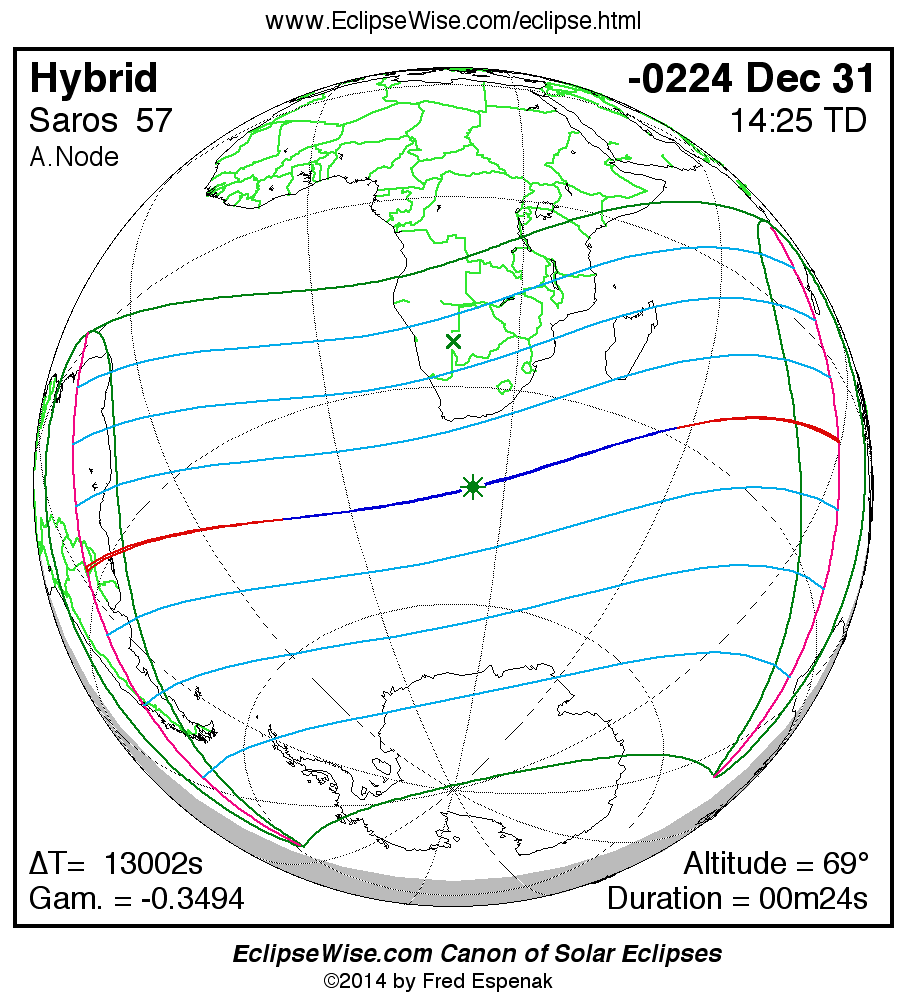

eclipse map

The Hybrid Solar Eclipse of -0224 Dec 31 (0225 Dec 31 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -0224 Dec 31 at 14:24:32 TD (10:47:52 UT1). This is 3.1 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of -26542.

The eclipse belongs to Saros 57 and is number 53 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of -0224 Dec 31 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as annular. Further down the track it changes to total and then back to annular before the path ends. It is a very short hybrid eclipse with a duration at greatest eclipse of 00m24s. The eclipse magnitude is 1.0046, while Gamma has a value of -0.3494.

The hybrid solar eclipse of -0224 Dec 31 is followed two weeks later by a penumbral lunar eclipse on -0223 Jan 14.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 13000.0 seconds for this eclipse. The uncertainty in ΔT is 333.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.40°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of -0224 Dec 31 .

Eclipse Data: Hybrid Solar Eclipse of -0224 Dec 31

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.00456
Eclipse Obscuration 1.00914
Gamma-0.34936
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -0224 Dec 31 at 14:24:32.2 TD (10:47:52.2 UT1) 1639606.949909
Ecliptic Conjunction -0224 Dec 31 at 14:20:47.2 TD (10:44:07.2 UT1) 1639606.947306
Equatorial Conjunction -0224 Dec 31 at 14:18:40.1 TD (10:42:00.1 UT1) 1639606.945834
Geocentric Coordinates of Sun and Moon
-0224 Dec 31 at 14:24:32.2 TD (10:47:52.2 UT1)
Coordinate Sun Moon
Right Ascension18h31m34.5s18h31m48.3s
Declination-23°31'20.5"-23°51'38.2"
Semi-Diameter 16'14.2" 16'03.7"
Eq. Hor. Parallax 08.9" 0°58'56.8"
Geocentric Libration of Moon
Angle Value
l -4.3°
b 0.5°
c -1.8°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 13000.0 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 57 (53/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of -0224 Dec 31

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP111:41:55.808:05:15.820°03.0'S038°37.8'W
First Internal ContactP213:54:14.710:17:34.752°41.4'S097°23.5'W
Last Internal ContactP314:54:59.511:18:19.538°06.4'S122°13.0'E
Last External ContactP417:07:05.313:30:25.303°47.8'S070°53.8'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N112:27:30.008:50:50.001°58.0'N040°01.3'W
South Extreme Path Limit 1S113:41:45.210:05:05.261°18.2'S112°06.5'W
North Extreme Path Limit 2N216:21:28.712:44:48.818°13.8'N072°24.0'E
South Extreme Path Limit 2S215:07:30.811:30:50.848°55.5'S129°05.1'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of -0224 Dec 31

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU112:43:17.409:06:37.426°43.0'S057°28.9'W
First Internal ContactU212:44:03.509:07:23.526°50.7'S057°44.7'W
Last Internal ContactU316:05:06.712:28:26.710°41.9'S089°26.9'E
Last External ContactU416:05:47.412:29:07.510°34.9'S089°13.5'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N112:43:28.909:06:49.026°35.9'S057°27.8'W
South Extreme Path Limit 1S112:43:52.009:07:12.026°57.7'S057°45.7'W
North Extreme Path Limit 2N216:05:37.212:28:57.310°28.6'S089°13.2'E
South Extreme Path Limit 2S216:05:16.912:28:37.010°48.2'S089°27.2'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of -0224 Dec 31

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C112:43:40.509:07:00.526°46.8'S057°36.8'W
Extreme Central Line Limit 2C216:05:27.112:28:47.110°38.4'S089°20.2'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse14:24:32.210:47:52.243°53.5'S030°10.0'W 69.3° 348.8° 16.9 km00m23.89s
Greatest Duration12:43:40.509:07:00.526°46.8'S057°36.8'W 0.0° 116.6° 49.2 km00m39.99s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of -0224 Dec 31

Polynomial Besselian Elements
-0224 Dec 31 at 14:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.17127 -0.38027 -23.5224 0.54940 0.00322 28.3125
1 0.55048 0.08570 0.0021 -0.00011 -0.00011 14.9965
2 -0.00000 0.00019 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047468
Tan ƒ2 0.0047232

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 14.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of -0224 Dec 31 (0225 Dec 31 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of -0224 Dec 31 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 13000.0 seconds for this eclipse. The uncertainty in ΔT is 333.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.40°.
