Hybrid Solar Eclipse of -0097 Mar 17 (0098 Mar 17 BCE)

Fred Espenak

Introduction

eclipse map

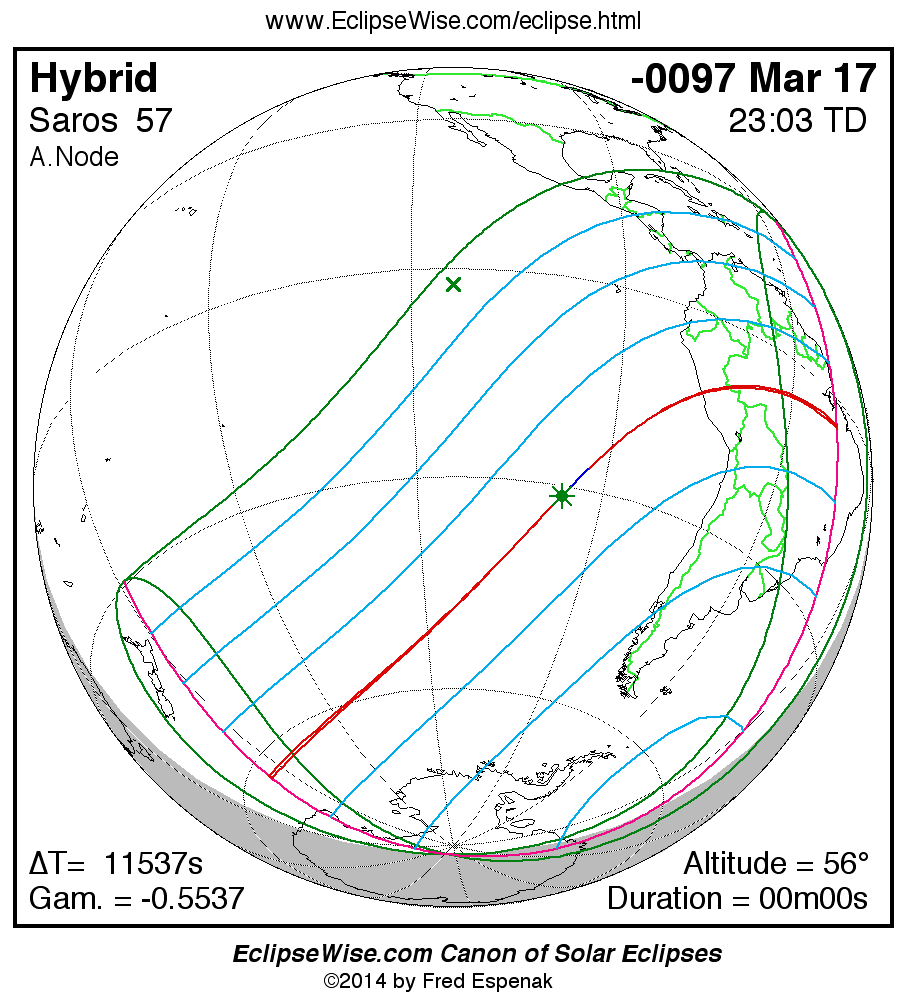

The Hybrid Solar Eclipse of -0097 Mar 17 (0098 Mar 17 BCE) is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on -0097 Mar 17 at 23:02:40 TD (19:50:24 UT1). This is 5.5 days before the Moon reaches perigee. During the eclipse, the Sun is in the constellation Aries. The synodic month in which the eclipse takes place has a Brown Lunation Number of -24981.

The eclipse belongs to Saros 57 and is number 60 of 73 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of -0097 Mar 17 is one of the rare hybrid solar eclipses. In this particular case the eclipse path starts out as annular. Further down the track it changes to total and then back to annular before the path ends. It is a very short hybrid eclipse with a duration at greatest eclipse of 00m00s. The eclipse magnitude is 1.0001, while Gamma has a value of -0.5537.

The hybrid solar eclipse of -0097 Mar 17 is followed two weeks later by a partial lunar eclipse on -0097 Mar 31.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 11535.6 seconds for this eclipse. The uncertainty in ΔT is 293.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.23°.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Hybrid Solar Eclipse of -0097 Mar 17 .

Eclipse Data: Hybrid Solar Eclipse of -0097 Mar 17

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 1.00006
Eclipse Obscuration 1.00012
Gamma-0.55370
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse -0097 Mar 17 at 23:02:40.0 TD (19:50:24.4 UT1) 1685704.326671
Ecliptic Conjunction -0097 Mar 17 at 22:56:35.6 TD (19:44:20.0 UT1) 1685704.322453
Equatorial Conjunction -0097 Mar 17 at 22:28:29.6 TD (19:16:14.0 UT1) 1685704.302939
Geocentric Coordinates of Sun and Moon
-0097 Mar 17 at 23:02:40.0 TD (19:50:24.4 UT1)
Coordinate Sun Moon
Right Ascension23h37m19.7s23h38m22.1s
Declination-02°29'00.7"-02°56'47.1"
Semi-Diameter 15'55.1" 15'42.5"
Eq. Hor. Parallax 08.8" 0°57'39.0"
Geocentric Libration of Moon
Angle Value
l -4.9°
b 0.7°
c -22.1°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 11535.6 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 57 (60/73)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of -0097 Mar 17

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactP120:23:24.117:11:08.450°20.0'S168°16.6'W
Last External ContactP401:42:03.122:29:47.508°23.4'N065°16.7'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N121:11:12.217:58:56.629°36.2'S178°36.7'W
South Extreme Path Limit 1S100:54:03.621:41:48.029°10.5'N054°17.4'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Hybrid Solar Eclipse of -0097 Mar 17

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
First External ContactU121:30:46.418:18:30.862°52.9'S173°01.1'E
First Internal ContactU221:31:50.118:19:34.463°11.1'S172°41.4'E
Last Internal ContactU300:33:53.421:21:37.804°30.7'S047°40.7'W
Last External ContactU400:34:50.921:22:35.304°14.1'S047°55.8'W
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
North Extreme Path Limit 1N121:31:00.118:18:44.562°45.5'S172°59.3'E
South Extreme Path Limit 1S121:31:36.518:19:20.863°18.4'S172°43.2'E
North Extreme Path Limit 2N200:34:38.521:22:22.904°07.3'S047°53.0'W
South Extreme Path Limit 2S200:34:05.821:21:50.204°37.4'S047°43.5'W

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Hybrid Solar Eclipse of -0097 Mar 17

Extreme Limits of the Central Line
Contact Event Contact Time
TD		 Time
UT1		 Latitude Longitude
Extreme Central Line Limit 1C121:31:18.218:19:02.663°01.9'S172°51.3'E
Extreme Central Line Limit 2C200:34:22.221:22:06.604°22.3'S047°48.2'W

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD		 Time
UT1		 Latitude Longitude Sun
Altitude		 Sun
Azimuth		 Path Width Central
Duration
Greatest Eclipse23:02:40.019:50:24.431°26.4'S144°46.4'W 56.2° 325.3° 0.3 km00m00.32s
Greatest Duration21:31:18.218:19:02.663°01.9'S172°51.3'E 0.0° 95.5° 62.2 km00m52.19s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Hybrid Solar Eclipse of -0097 Mar 17

Polynomial Besselian Elements
-0097 Mar 17 at 23:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.24958 -0.49486 -2.4831 0.55002 0.00384 162.5888
1 0.47529 0.26637 0.0156 -0.00012 -0.00012 15.0049
2 -0.00000 0.00004 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0046536
Tan ƒ2 0.0046304

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 23.000

Explanation of Polynomial Besselian Elements

Links for the Hybrid Solar Eclipse of -0097 Mar 17 (0098 Mar 17 BCE)

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Hybrid Solar Eclipse of -0097 Mar 17 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 11535.6 seconds for this eclipse. The uncertainty in ΔT is 293.9 seconds corresponding to a standard error in longitude of the eclipse path of ± 1.23°.
