Penumbral Lunar Eclipse of 2096 May 07

Fred Espenak

Introduction

The Penumbral Lunar Eclipse of 2096 May 07 is visible from the following geographic regions:

eastern Asia, Australia, western Americas

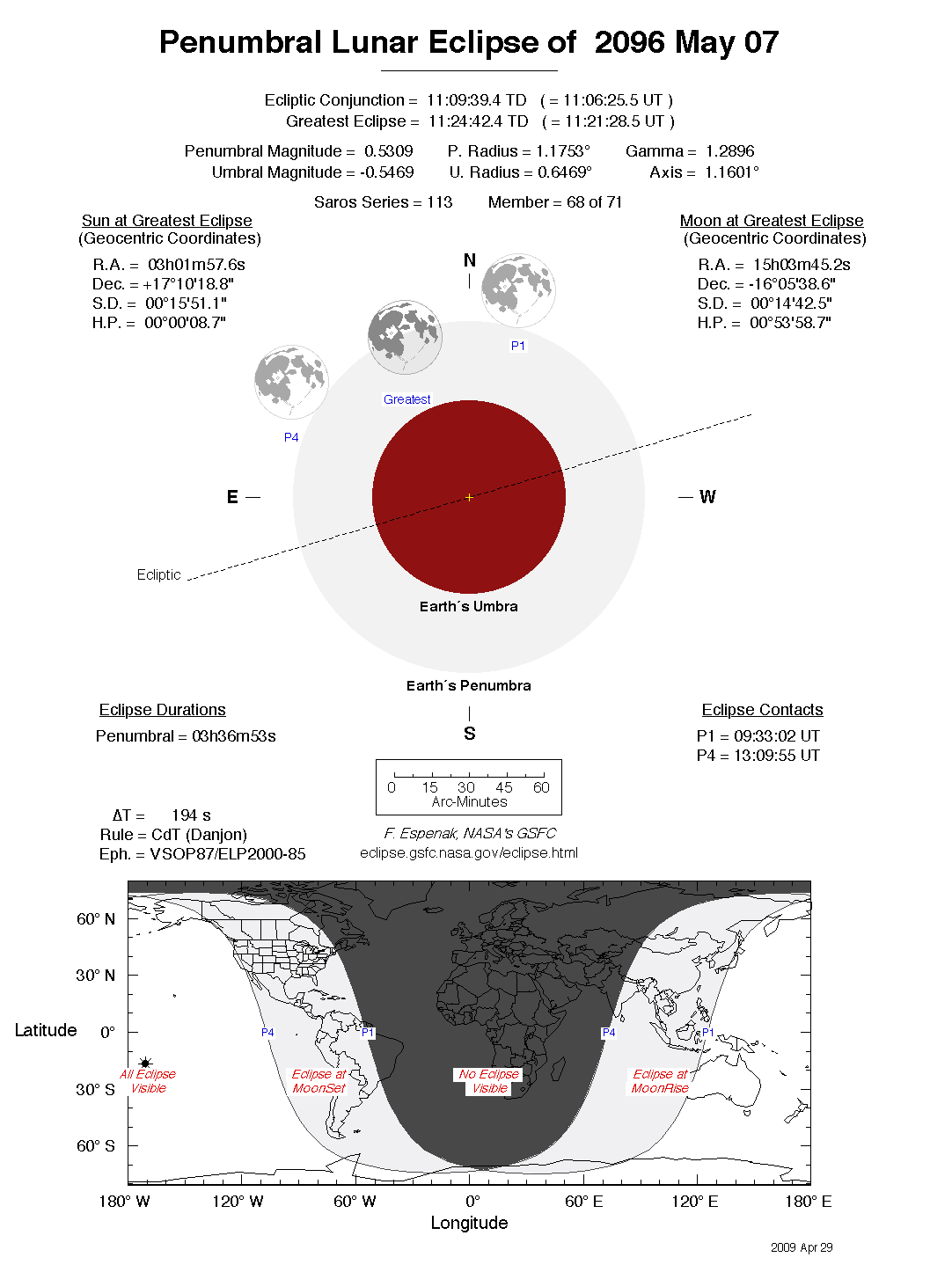

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2096 May 07 at 11:24:44 TD (11:22:40 UT1). This is 0.4 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Libra. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2144.

The eclipse belongs to Saros 113 and is number 68 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

The penumbral lunar eclipse of 2096 May 07 is followed two weeks later by a total solar eclipse on 2096 May 22.

Another lunar eclipse occurs one synodic month after the 2096 May 07 eclipse. It is the penumbral lunar eclipse of 2096 Jun 06.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 123.3 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Detailed Lunar Eclipse Figure - eclipse geometry diagram and map of eclipse visibility (Key to Figure)
Saros 113 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Penumbral Lunar Eclipse of 2096 May 07 .

Eclipse Data: Penumbral Lunar Eclipse of 2096 May 07

Eclipse Characteristics
Parameter	Value
Penumbral Magnitude	0.53272
Umbral Magnitude	-0.54506
Gamma	1.28966
Epsilon	1.1601°

Opposition Times
Event	Calendar Date & Time	Julian Date
Greatest Eclipse	2096 May 07 at 11:24:43.7 TD (11:22:40.5 UT1)	2486735.974079
Ecliptic Opposition	2096 May 07 at 11:09:39.6 TD (11:07:36.3 UT1)	2486735.963615
Equatorial Opposition	2096 May 07 at 10:23:19.3 TD (10:21:16.1 UT1)	2486735.931436

Geocentric Coordinates of Sun and Moon
2096 May 07 at 11:24:43.7 TD (11:22:40.5 UT1)
Coordinate	Sun	Moon
Right Ascension	03h01m57.6s	15h03m45.2s
Declination	+17°10'18.7"	-16°05'38.7"
Semi-Diameter	15'51.1"	14'42.5"
Eq. Hor. Parallax	08.7"	0°53'58.7"

Geocentric Libration of Moon
Angle	Value
l	-0.5°
b	-1.5°
c	14.5°

Earth's Shadows
Parameter	Value
Penumbral Radius	1.1785°
Umbral Radius	0.6501°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE430
ΔT	123.3 s
Shadow Rule	Herald/Sinnott
Shadow Enlargement	1.000
Saros Series	113 (68/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Penumbral Lunar Eclipse of 2096 May 07

Lunar Eclipse Contacts
Eclipse Event	Contact	Time TD	Time UT1	Zenith Latitude	Zenith Longitude	Position Angle	Axis Distance
Penumbral Begins	P1	09:36:06.5	09:34:03.3	15°46.2'S	144°43.1'W	346.5°	1.4210°
Greatest Eclipse	Greatest	11:24:43.7	11:22:40.5	16°05.6'S	171°04.9'W	21.8°	1.1601°
Penumbral Ends	P4	13:13:46.3	13:11:43.0	16°25.0'S	162°27.3'E	57.2°	1.4229°

Eclipse Durations
Eclipse Phase	Duration
Penumbral (P4 - P1)	03h37m39.8s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Penumbral Lunar Eclipse of 2096 May 07

Polynomial Besselian Elements
2096 May 07 at 11:00:00.0 TD (=t0)
n	x	y	d	f1	f2	f3
0	0.25721	1.14656	0.2996	1.17853	0.65012	0.24513
1	0.42079	-0.16827	0.0002	0.00002	0.00003	0.00001
2	0.00004	0.00004	-0.0000	0.00000	0.00000	0.00000
3	-0.00000	0.00000	-	-	-	-

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Besselian Elements
