Total Lunar Eclipse of 2011 Jun 15

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction

The Total Lunar Eclipse of 2011 Jun 15 is visible from the following geographic regions:

  • South America, Europe, Africa, Asia, Australia

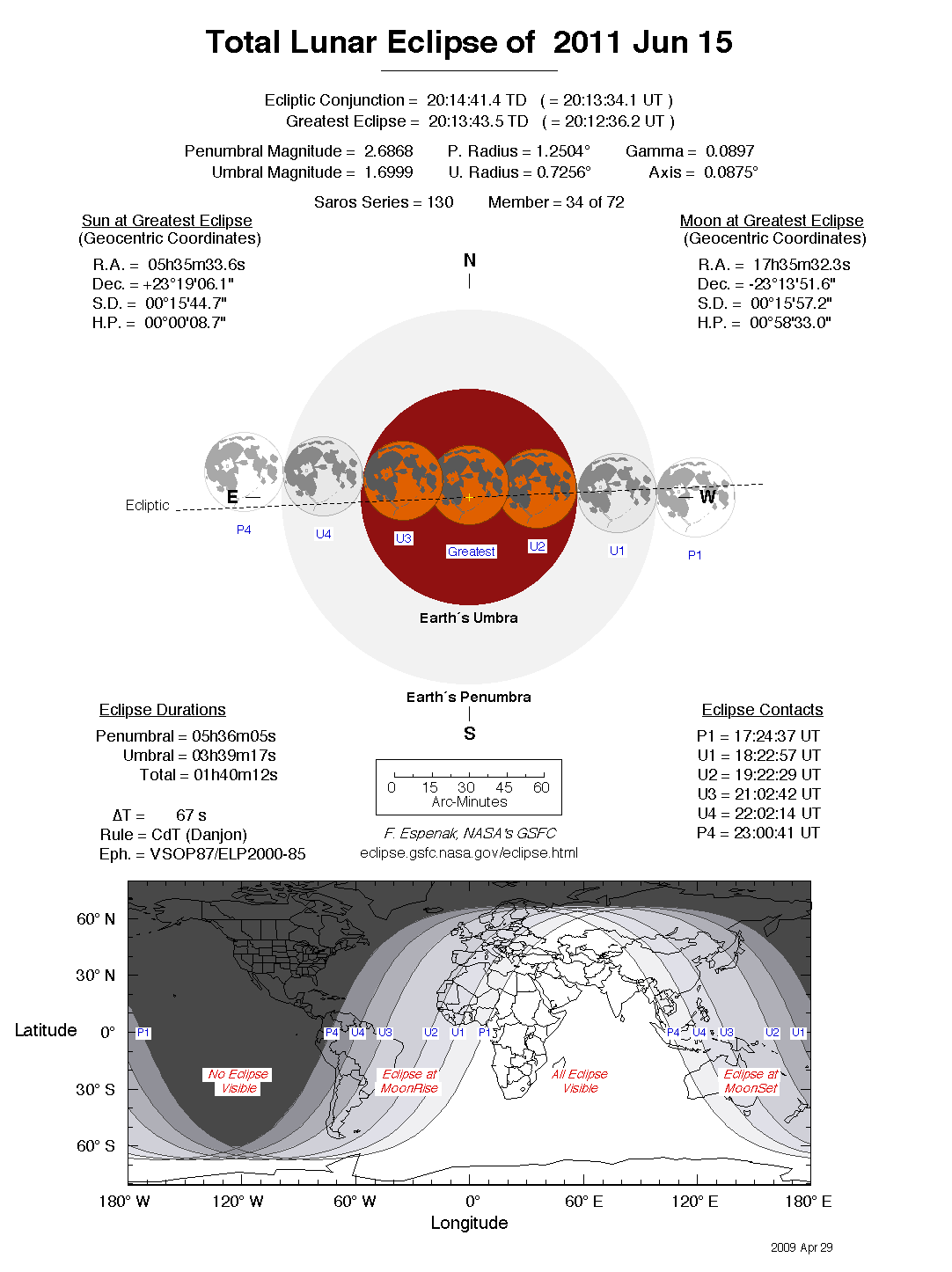

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2011 Jun 15 at 20:13:43 TD (20:12:37 UT1). This is 3.8 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Ophiuchus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1094.

The eclipse belongs to Saros 130 and is number 34 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This total eclipse is central meaning the Moon’s disk actually passes through the axis of Earth’s umbral shadow. It has an umbral eclipse magnitude of 1.7014, and Gamma has a value of 0.0897. Because they are so deep, such eclipses typically have the longest total phases. In this case, the duration of totality lasts 101.0 minutes. That qualifies the eclipse as a member of a select class of exceptionally long total eclipses with durations exceeding 100 minutes.

The total lunar eclipse of 2011 Jun 15 is preceded two weeks earlier by a partial solar eclipse on 2011 Jun 01, and it is followed two weeks later by a partial solar eclipse on 2011 Jul 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 66.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of 2011 Jun 15 .

Eclipse Data: Total Lunar Eclipse of 2011 Jun 15

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.68833
Umbral Magnitude 1.70136
Gamma 0.08968
Epsilon 0.0875°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 2011 Jun 15 at 20:13:43.4 TD (20:12:36.9 UT1) 2455728.342094
Ecliptic Opposition 2011 Jun 15 at 20:14:41.4 TD (20:13:34.8 UT1) 2455728.342764
Equatorial Opposition 2011 Jun 15 at 20:14:16.5 TD (20:13:10.0 UT1) 2455728.342476
Geocentric Coordinates of Sun and Moon
2011 Jun 15 at 20:13:43.4 TD (20:12:36.9 UT1)
Coordinate Sun Moon
Right Ascension05h35m33.6s17h35m32.3s
Declination+23°19'06.1"-23°13'51.6"
Semi-Diameter 15'44.7" 15'57.2"
Eq. Hor. Parallax 08.7" 0°58'33.0"
Geocentric Libration of Moon
Angle Value
l 4.7°
b -0.1°
c 4.0°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2540°
Umbral Radius 0.7291°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE430
ΔT 66.5 s
Shadow Rule Herald/Sinnott
Shadow Enlargement 1.000
Saros Series 130 (34/71)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of 2011 Jun 15

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD		 Time
UT1		 Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP117:25:16.917:24:10.423°18.1'S097°25.4'E 270.1° 1.5213°
Partial BeginsU118:23:39.318:22:32.823°16.8'S083°24.3'E 271.8° 0.9960°
Total BeginsU219:23:12.819:22:06.323°15.3'S069°06.1'E 277.7° 0.4634°
Greatest EclipseGreatest20:13:43.420:12:36.923°13.9'S056°58.2'E 356.8° 0.0875°
Total EndsU321:04:12.121:03:05.623°12.4'S044°50.8'E 75.8° 0.4628°
Partial EndsU422:03:45.222:02:38.723°10.4'S030°32.5'E 81.7° 0.9940°
Penumbral EndsP423:02:15.623:01:09.023°08.4'S016°29.3'E 83.4° 1.5183°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h36m58.6s
Partial (U4 - U1)03h40m05.9s
Total (U3 - U2)01h40m59.3s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of 2011 Jun 15

Polynomial Besselian Elements
2011 Jun 15 at 20:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.12837 0.08038 0.4070 1.25408 0.72922 0.26592
1 0.53962 0.03050 0.0000 -0.00042 -0.00042 -0.00011
2 -0.00025 0.00014 0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Total Lunar Eclipse of 2011 Jun 15

Links to Additional Lunar Eclipse Information

• Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Total Lunar Eclipse of 2011 Jun 15 were generated using the JPL DE430 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The elliptical shape of Earth's umbral and penumbral shadows were calculated using the Herald/Sinnott method of modeling Earth's shadows to compensate for the opacity of the terrestrial atmosphere (including the oblateness of Earth).

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 66.5 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
