Partial Lunar Eclipse of 2008 Aug 16

Fred Espenak

Introduction

The Partial Lunar Eclipse of 2008 Aug 16 is visible from the following geographic regions:

South America, Europe, Africa, Asia, Australia

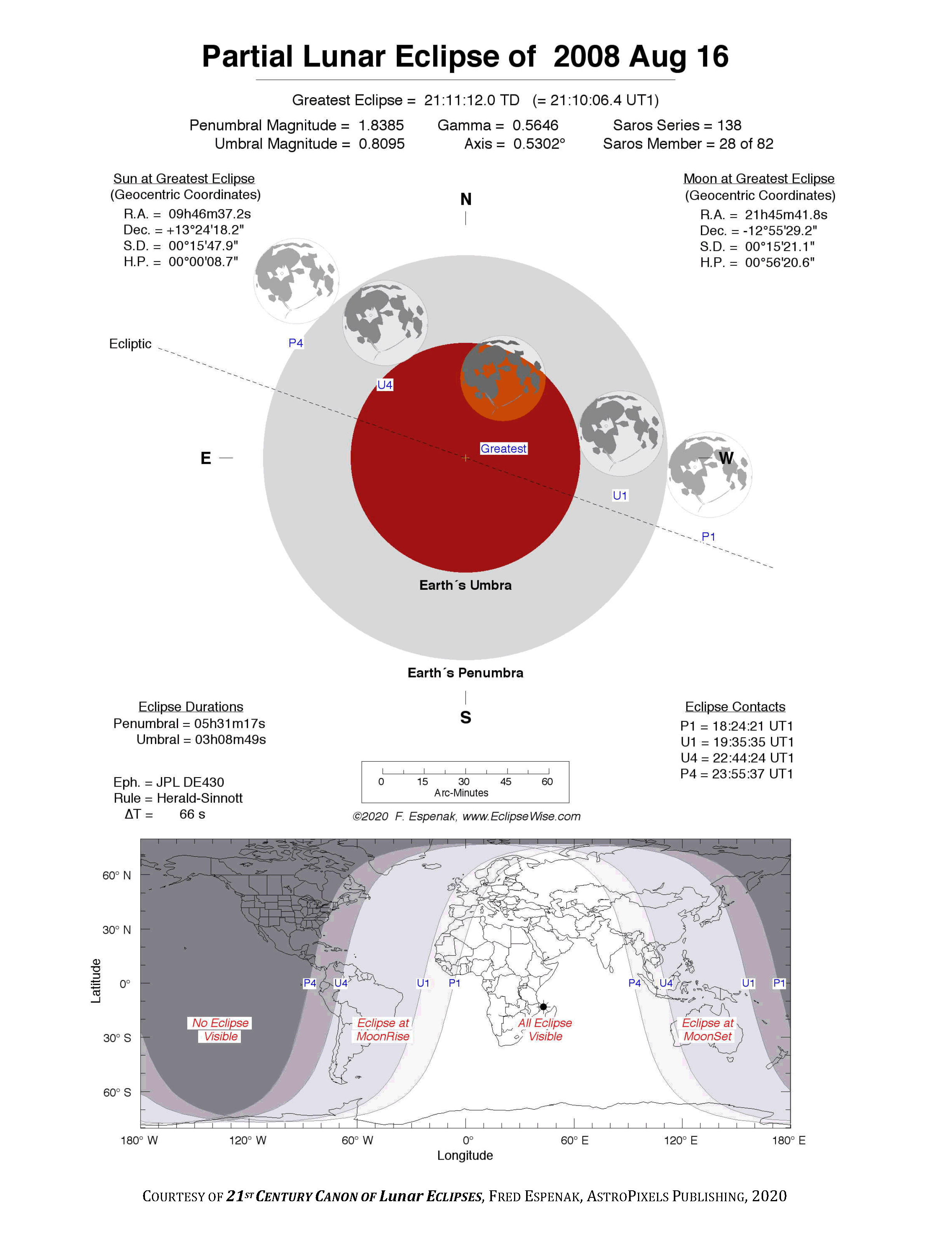

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 2008 Aug 16 at 21:11:12 TD (21:10:06 UT1). This is 6.0 days after the Moon reaches apogee. During the eclipse, the Moon is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 1059.

The eclipse belongs to Saros 138 and is number 28 of 82 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The partial lunar eclipse of 2008 Aug 16 is preceded two weeks earlier by a total solar eclipse on 2008 Aug 01.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 65.7 seconds for this eclipse.

The following links provide maps and data for the eclipse.

Detailed Lunar Eclipse Figure - eclipse geometry diagram and map of eclipse visibility (Key to Figure)
Saros 138 Table - data for all eclipses in the Saros series

The tables below contain detailed predictions and additional information on the Partial Lunar Eclipse of 2008 Aug 16 .

Eclipse Data: Partial Lunar Eclipse of 2008 Aug 16

Eclipse Characteristics
Parameter	Value
Penumbral Magnitude	1.83849
Umbral Magnitude	0.80946
Gamma	0.56463
Epsilon	0.5302°

Opposition Times
Event	Calendar Date & Time	Julian Date
Greatest Eclipse	2008 Aug 16 at 21:11:12.0 TD (21:10:06.4 UT1)	2454695.382018
Ecliptic Opposition	2008 Aug 16 at 21:17:32.9 TD (21:16:27.3 UT1)	2454695.386427
Equatorial Opposition	2008 Aug 16 at 21:41:06.6 TD (21:40:01.0 UT1)	2454695.402789

Geocentric Coordinates of Sun and Moon
2008 Aug 16 at 21:11:12.0 TD (21:10:06.4 UT1)
Coordinate	Sun	Moon
Right Ascension	09h46m37.2s	21h45m41.8s
Declination	+13°24'18.2"	-12°55'29.2"
Semi-Diameter	15'47.9"	15'21.1"
Eq. Hor. Parallax	08.7"	0°56'20.6"

Geocentric Libration of Moon
Angle	Value
l	-4.7°
b	-0.6°
c	-17.8°

Earth's Shadows
Parameter	Value
Penumbral Radius	1.2176°
Umbral Radius	0.6910°

Prediction Paramaters
Paramater	Value
Ephemerides	JPL DE430
ΔT	65.7 s
Shadow Rule	Herald/Sinnott
Shadow Enlargement	1.000
Saros Series	138 (28/82)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Partial Lunar Eclipse of 2008 Aug 16

Lunar Eclipse Contacts
Eclipse Event	Contact	Time TD	Time UT1	Zenith Latitude	Zenith Longitude	Position Angle	Axis Distance
Penumbral Begins	P1	18:25:26.2	18:24:20.6	13°32.3'S	083°26.3'E	266.0°	1.4721°
Partial Begins	U1	19:36:41.0	19:35:35.4	13°16.6'S	066°10.5'E	279.0°	0.9460°
Greatest Eclipse	Greatest	21:11:12.0	21:10:06.4	12°55.5'S	043°16.3'E	334.9°	0.5302°
Partial Ends	U4	22:45:30.0	22:44:24.3	12°34.3'S	020°25.2'E	30.8°	0.9454°
Penumbral Ends	P4	23:56:43.0	23:55:37.4	12°18.2'S	003°09.6'E	43.8°	1.4732°

Eclipse Durations
Eclipse Phase	Duration
Penumbral (P4 - P1)	05h31m16.8s
Partial (U4 - U1)	03h08m48.9s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Partial Lunar Eclipse of 2008 Aug 16

Polynomial Besselian Elements
2008 Aug 16 at 21:00:00.0 TD (=t0)
n	x	y	d	f1	f2	f3
0	-0.30887	0.44079	0.2340	1.21749	0.69090	0.25585
1	0.45067	0.21091	-0.0002	0.00038	0.00038	0.00010
2	0.00017	0.00014	-0.0000	0.00000	0.00000	0.00000
3	-0.00001	-0.00000	-	-	-	-

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t² + x3*t³ (or x = Σ [xn*tⁿ]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 21.000

Explanation of Besselian Elements

Eclipse Publications

For more visit: AstroPixels Publishing

Links for the Partial Lunar Eclipse of 2008 Aug 16

Detailed Lunar Eclipse Figure - eclipse geometry figure and map of eclipse visibility using new Herald/Sinnott method

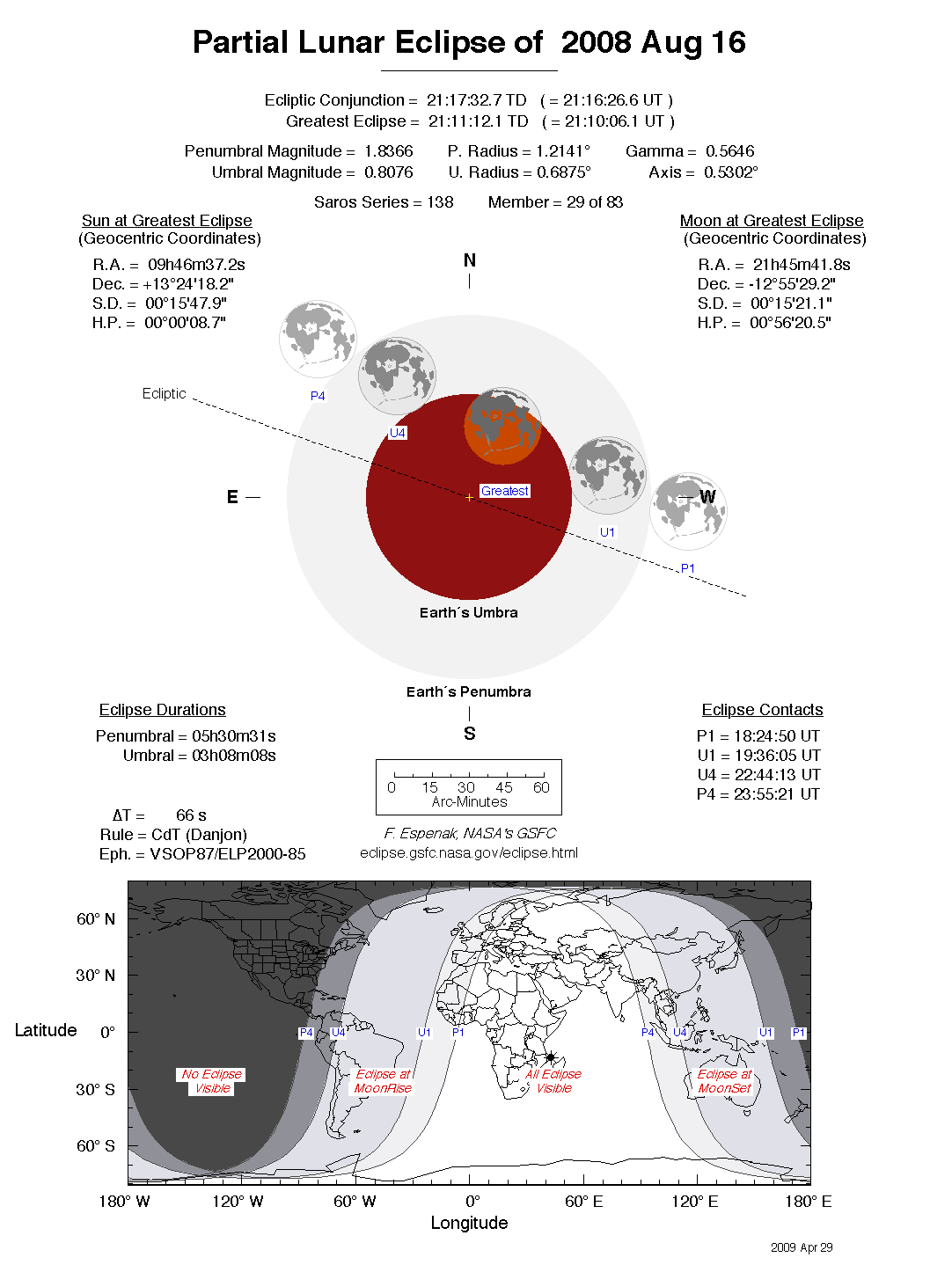

Detailed Lunar Eclipse Figure - eclipse geometry figure and map of eclipse visibility using older Danjon method
