Total Lunar Eclipse of 1960 Sep 05

Fred Espenak

Key to Lunar Eclipse Figure (below)

Introduction

The Total Lunar Eclipse of 1960 Sep 05 is visible from the following geographic regions:

  • eastern Asia, Australia, Pacific, Americas

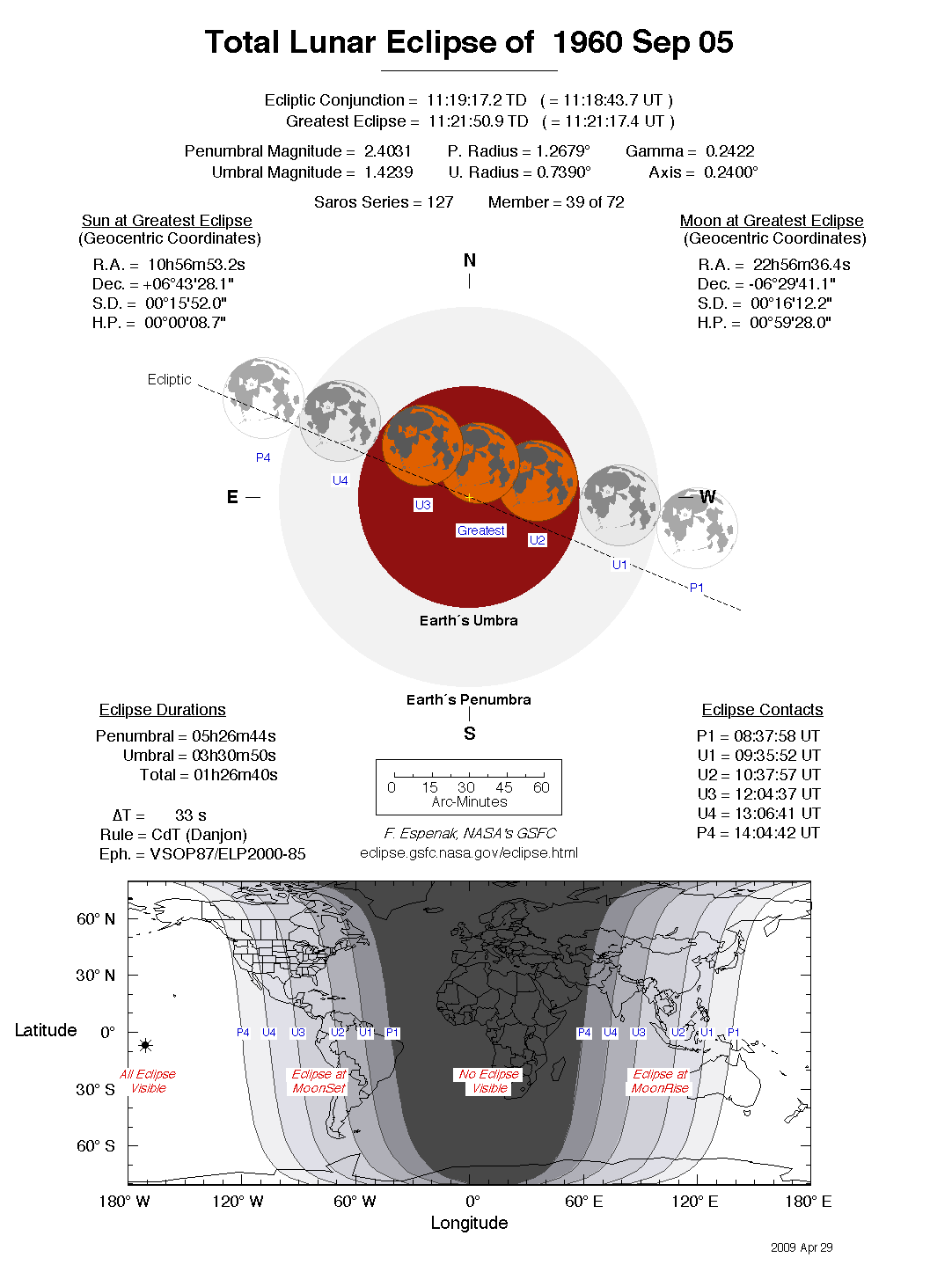

The diagram to the right depicts the Moon's path with respect to Earth's umbral and penumbral shadows. Below it is a map showing the geographic regions of eclipse visibility. Click on the figure to enlarge it. For an explanation of the features appearing in the figure, see Key to Lunar Eclipse Figures.

The instant of greatest eclipse takes place on 1960 Sep 05 at 11:21:51 TD (11:21:17 UT1). This is 2.6 days after the Moon reaches perigee. During the eclipse, the Moon is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of 466.

The eclipse belongs to Saros 127 and is number 39 of 72 eclipses in the series. All eclipses in this series occur at the Moon’s descending node. The Moon moves northward with respect to the node with each succeeding eclipse in the series and gamma increases.

This total eclipse is central meaning the Moon’s disk actually passes through the axis of Earth’s umbral shadow. It has an umbral eclipse magnitude of 1.4239, and Gamma has a value of 0.2422. Because they are so deep, such eclipses typically have the longest total phases. In this case, the duration of totality lasts 86.7 minutes.

The total lunar eclipse of 1960 Sep 05 is followed two weeks later by a partial solar eclipse on 1960 Sep 20.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., TD = UT1 + ΔT). ΔT has a value of 33.5 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Total Lunar Eclipse of 1960 Sep 05 .

Eclipse Data: Total Lunar Eclipse of 1960 Sep 05

Eclipse Characteristics
Parameter Value
Penumbral Magnitude 2.40311
Umbral Magnitude 1.42386
Gamma 0.24219
Epsilon 0.2400°
Opposition Times
Event Calendar Date & Time Julian Date
Greatest Eclipse 1960 Sep 05 at 11:21:50.9 TD (11:21:17.4 UT1) 2437182.973118
Ecliptic Opposition 1960 Sep 05 at 11:19:17.2 TD (11:18:43.7 UT1) 2437182.971339
Equatorial Opposition 1960 Sep 05 at 11:29:40.0 TD (11:29:06.5 UT1) 2437182.978548
Geocentric Coordinates of Sun and Moon
1960 Sep 05 at 11:21:50.9 TD (11:21:17.4 UT1)
Coordinate Sun Moon
Right Ascension10h56m53.2s22h56m36.4s
Declination+06°43'28.1"-06°29'41.1"
Semi-Diameter 15'52.0" 16'12.2"
Eq. Hor. Parallax 08.7" 0°59'28.1"
Geocentric Libration of Moon
Angle Value
l 4.4°
b -0.3°
c -24.0°
Earth's Shadows
Parameter Value
Penumbral Radius 1.2679°
Umbral Radius 0.7390°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE405
ΔT 33.5 s
Shadow Rule Danjon
Shadow Enlargement 1.010
Saros Series 127 (39/72)

Explanation of Lunar Eclipse Data Tables

Eclipse Contacts: Total Lunar Eclipse of 1960 Sep 05

Lunar Eclipse Contacts
Eclipse Event Contact Time
TD		 Time
UT1		 Zenith Latitude Zenith Longitude Position Angle Axis Distance
Penumbral BeginsP108:38:27.808:37:54.406°58.5'S131°20.9'W 262.1° 1.5393°
Partial BeginsU109:36:24.009:35:50.506°48.3'S145°18.9'W 266.9° 1.0099°
Total BeginsU210:38:30.010:37:56.506°37.3'S160°17.2'W 283.9° 0.4692°
Greatest EclipseGreatest11:21:50.911:21:17.406°29.7'S170°44.3'W 343.2° 0.2400°
Total EndsU312:05:10.212:04:36.806°22.0'S178°49.0'E 42.4° 0.4687°
Partial EndsU413:07:15.513:06:42.006°11.0'S163°50.8'E 59.4° 1.0082°
Penumbral EndsP414:05:18.714:04:45.306°00.6'S149°50.9'E 64.2° 1.5366°
Eclipse Durations
Eclipse Phase Duration
Penumbral (P4 - P1)05h26m50.9s
Partial (U4 - U1)03h30m51.5s
Total (U3 - U2)01h26m40.2s

Explanation of Lunar Eclipse Contacts Table

Polynomial Besselian Elements: Total Lunar Eclipse of 1960 Sep 05

Polynomial Besselian Elements
1960 Sep 05 at 11:00:00.0 TD (=t0)
n x y d f1 f2 f3
0 -0.26398 0.17085 0.1175 1.26806 0.73915 0.27010
1 0.53402 0.16168 -0.0003 -0.00038 -0.00039 -0.00010
2 -0.00022 -0.00004 -0.0000 -0.00000 -0.00000 -0.00000
3 -0.00001 -0.00000 - - - -

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 11.000

Explanation of Besselian Elements

Eclipse Publications

jpeg jpeg
jpeg jpeg
jpeg

For more visit: AstroPixels Publishing


Links for the Total Lunar Eclipse of 1960 Sep 05

Links to Additional Lunar Eclipse Information

• Decade Tables of Lunar Eclipses:
| 1901 - 1910 | 1911 - 1919 | 1921 - 1930 | 1931 - 1940 | 1941 - 1950 |
| 1951 - 1960 | 1961 - 1970 | 1971 - 1980 | 1981 - 1990 | 1991 - 2000 |
| 2001 - 2010 | 2011 - 2020 | 2021 - 2030 | 2031 - 2040 | 2041 - 2050 |
| 2051 - 2060 | 2061 - 2070 | 2071 - 2080 | 2081 - 2090 | 2091 - 2100 |

Lunar Eclipse Publications

Eclipse Predictions

Predictions for the Total Lunar Eclipse of 1960 Sep 05 were generated using the JPL DE405 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass.

The Earth's umbral and penumbral shadows were calculated using the Danjon methodusing a mean mid-latitude ellipticity to compensate for the opacity of the terrestrial atmosphere.

The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 33.5 seconds for this eclipse.

Acknowledgments

Some of the content on this web site is based on the book 21st Century Canon of Lunar Eclipses. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
