Annular Solar Eclipse of 1692 Feb 17

Fred Espenak

Introduction

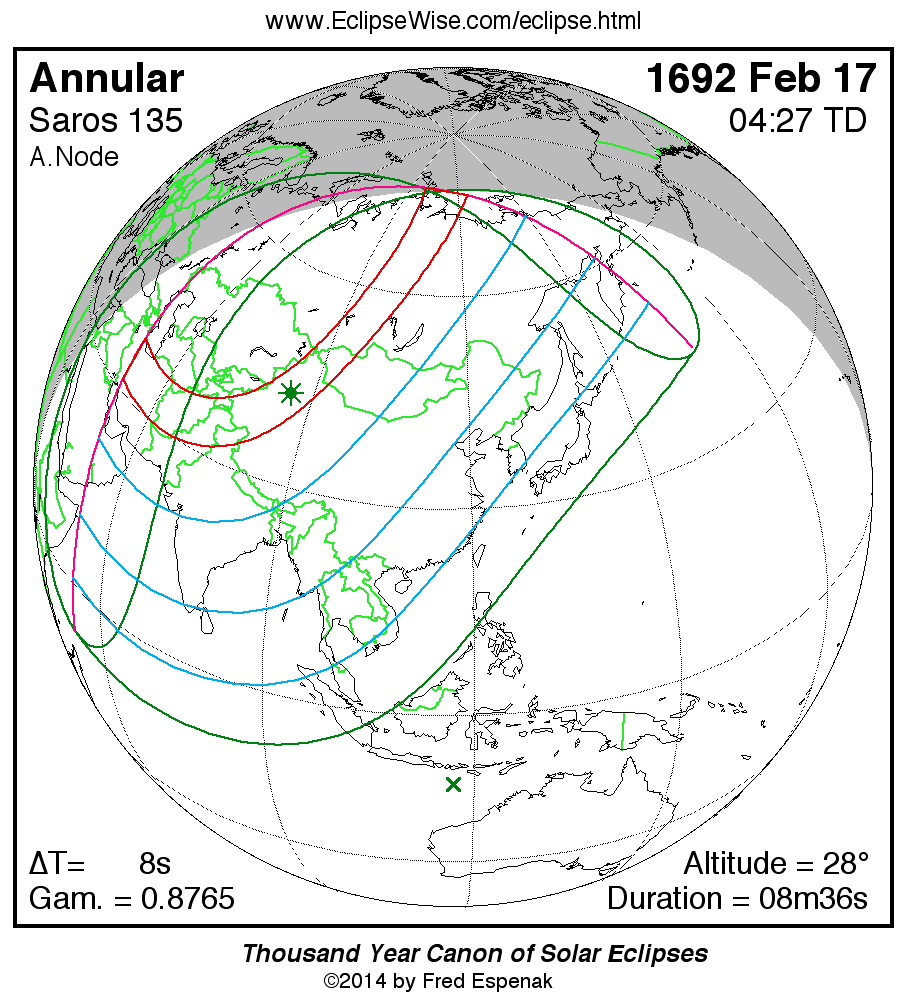

eclipse map


The Annular Solar Eclipse of 1692 Feb 17 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 1692 Feb 17 at 04:26:55 TD (04:26:47 UT1). This is 0.8 days before the Moon reaches apogee. During the eclipse, the Sun is in the constellation Aquarius. The synodic month in which the eclipse takes place has a Brown Lunation Number of -2855.

The eclipse belongs to Saros 135 and is number 21 of 71 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

The solar eclipse of 1692 Feb 17 is a relatively long annular eclipse with a duration at greatest eclipse of 08m36s. It has an eclipse magnitude of 0.9159.

The annular solar eclipse of 1692 Feb 17 is preceded two weeks earlier by a partial lunar eclipse on 1692 Feb 02.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 8.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Annular Solar Eclipse of 1692 Feb 17 .


Eclipse Data: Annular Solar Eclipse of 1692 Feb 17

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.91590
Eclipse Obscuration 0.83887
Gamma 0.87647
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 1692 Feb 17 at 04:26:55.2 TD (04:26:47.0 UT1) 2339097.685267
Ecliptic Conjunction 1692 Feb 17 at 04:37:22.9 TD (04:37:14.7 UT1) 2339097.692532
Equatorial Conjunction 1692 Feb 17 at 05:17:58.8 TD (05:17:50.6 UT1) 2339097.720725
Geocentric Coordinates of Sun and Moon
1692 Feb 17 at 04:26:55.2 TD (04:26:47.0 UT1)
Coordinate Sun Moon
Right Ascension22h02m50.0s22h01m25.5s
Declination-11°59'57.6"-11°17'34.0"
Semi-Diameter 16'10.1" 14'42.4"
Eq. Hor. Parallax 08.9" 0°53'58.3"
Geocentric Libration of Moon
Angle Value
l 0.5°
b -1.0°
c -18.7°
Prediction Paramaters
Paramater Value
Ephemerides JPL DE406
ΔT 8.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 135 (21/71)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1692 Feb 17

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP101:51:14.901:51:06.707°40.9'N067°31.0'E
Last External ContactP407:02:16.207:02:08.058°01.9'N148°15.2'E
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N102:40:36.902:40:28.708°05.9'S051°47.3'E
South Extreme Path Limit 1S106:13:02.706:12:54.542°53.8'N169°02.6'E

Explanation of Penumbral Shadow Contacts and Extremes Tables

Umbral Shadow Contacts and Extremes: Annular Solar Eclipse of 1692 Feb 17

Contacts of Umbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactU103:23:18.003:23:09.831°57.3'N050°29.0'E
First Internal ContactU203:37:01.003:36:52.837°35.1'N048°51.0'E
Last Internal ContactU305:16:16.405:16:08.277°59.2'N100°58.3'E
Last External ContactU405:30:01.905:29:53.777°00.3'N124°14.9'E
Extreme Northern and Southern Path Limits of Umbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N103:36:06.403:35:58.237°55.7'N049°11.7'E
South Extreme Path Limit 1S103:24:25.303:24:17.131°32.0'N050°04.6'E
North Extreme Path Limit 2N205:17:10.305:17:02.177°57.6'N099°04.9'E
South Extreme Path Limit 2S205:28:54.505:28:46.376°50.1'N126°15.7'E

Explanation of Umbral Shadow Contacts and Extremes Tables

Central Line Extremes and Duration: Annular Solar Eclipse of 1692 Feb 17

Extreme Limits of the Central Line
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
Extreme Central Line Limit 1C103:29:50.103:29:41.934°33.8'N049°39.0'E
Extreme Central Line Limit 2C205:23:28.605:23:20.477°47.0'N114°03.7'E

Explanation of Central Line Extremes Table

Greatest Eclipse and Greatest Duration
Event Time
TD
Time
UT1
Latitude Longitude Sun
Altitude
Sun
Azimuth
Path Width Central
Duration
Greatest Eclipse04:26:55.204:26:47.042°23.6'N085°32.7'E 28.5° 144.6° 643.9 km08m35.89s
Greatest Duration04:23:37.904:23:29.741°29.3'N084°39.4'E 28.4° 142.6° 654.8 km08m36.07s

Explanation of Greatest Eclipse and Greatest Duration

Polynomial Besselian Elements: Annular Solar Eclipse of 1692 Feb 17

Polynomial Besselian Elements
1692 Feb 17 at 04:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 -0.58800 0.68814 -12.0076 0.57362 0.02732 236.3577
1 0.45244 0.22119 0.0140 0.00002 0.00002 15.0020
2 -0.00001 0.00004 0.0000 -0.00001 -0.00001 0.0000
3 -0.00000 -0.00000 - - - -
Tan ƒ1 0.0047277
Tan ƒ2 0.0047042

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 4.000

Explanation of Polynomial Besselian Elements

Links for the Annular Solar Eclipse of 1692 Feb 17

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Annular Solar Eclipse of 1692 Feb 17 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 8.2 seconds for this eclipse.
